Suspension Glass Insulator

Name: "Suspension Glass Insulator"
Rating: 5 (215 reviews)

Quantity:

SKU: 2438165820

Model: U160B

Product Details

Product Specification

Type	Disc Insulator, Cap-and-Pin Insulator, Transmission Line Glass Insulator	Model	U160B
Params	mechanical failing load: 160kN disc diameter: 280mm nominal height: 127/146mm creepage distance: 360mm power frequency wet withstand voltage: 50kV lightning impulse withstand voltage: 140kV working temperature: -40°C to 60°C	Material	insulator body: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable Industry	Power Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

High-strength tempered glass insulator with excellent anti-pollution and corrosion resistance, 160kN rated mechanical load, reliable insulation for extra-heavy overhead transmission lines, easy installation for grid, electrical and rural power projects

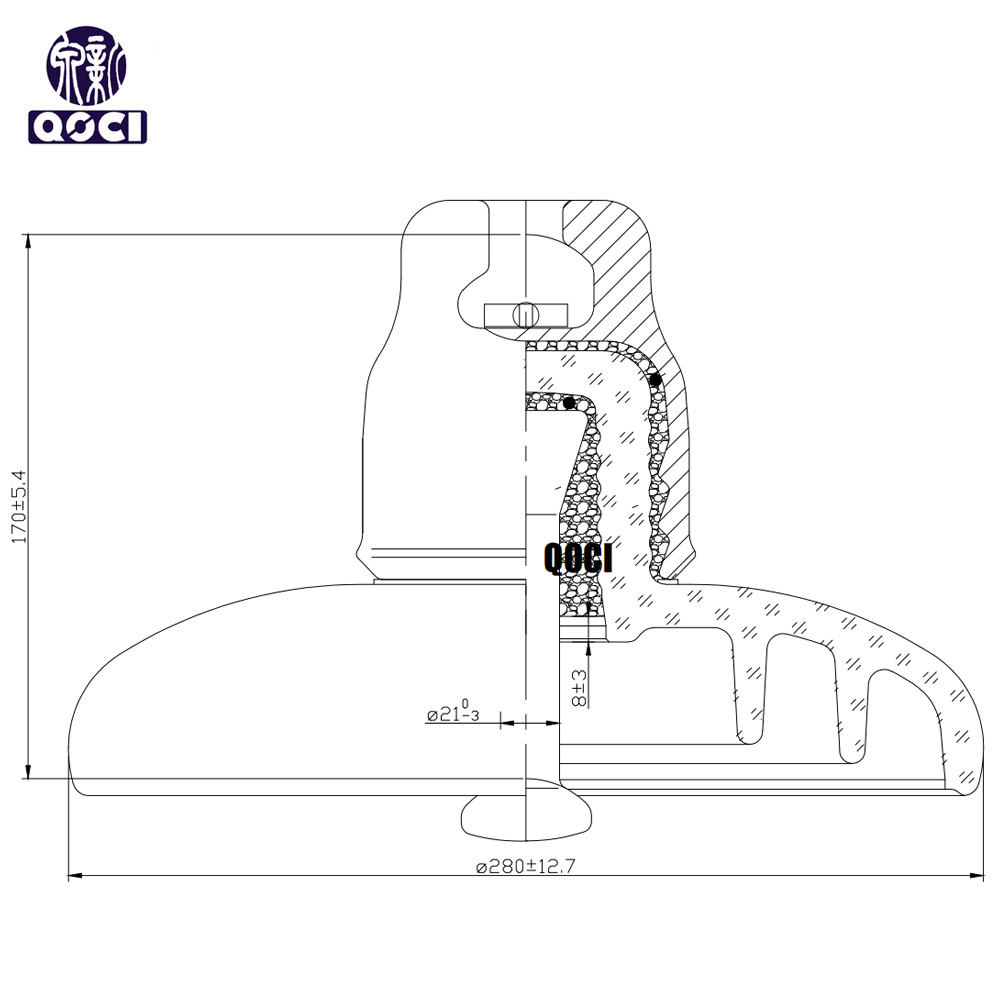

u160bl-25

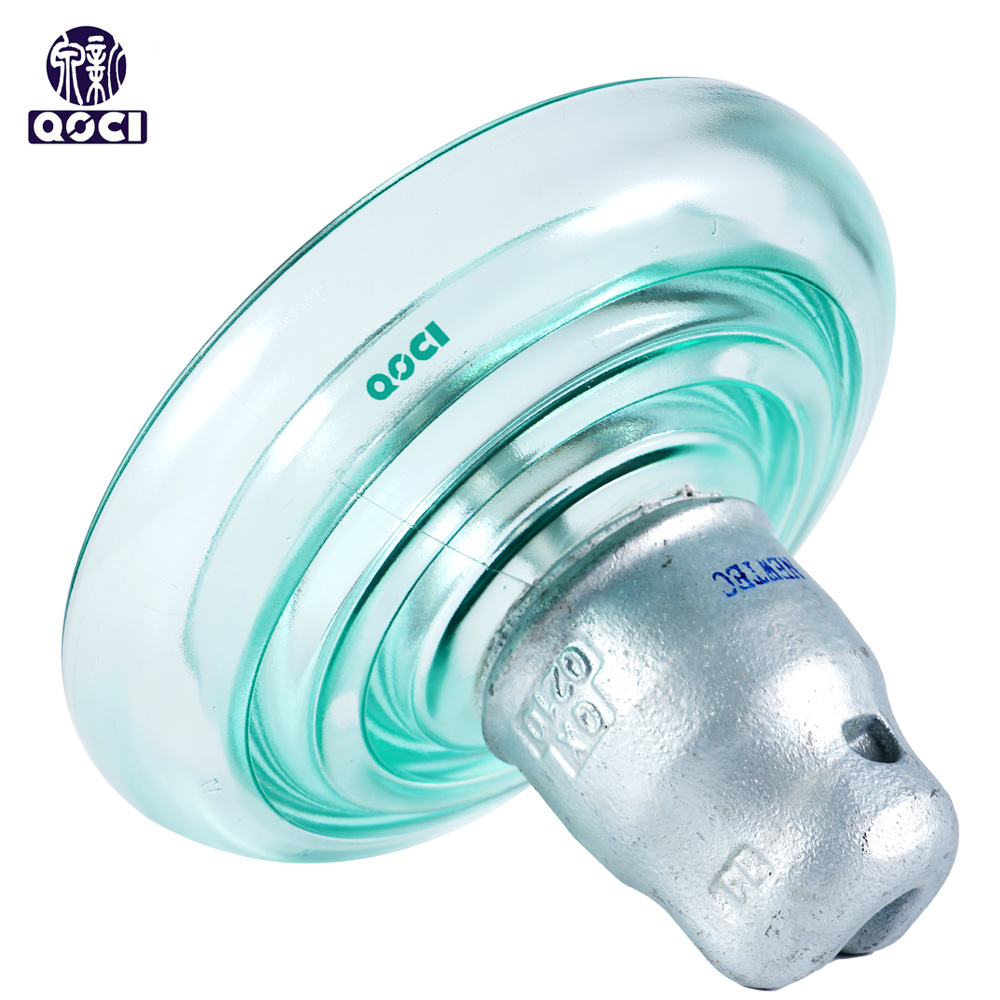

u160bl-24

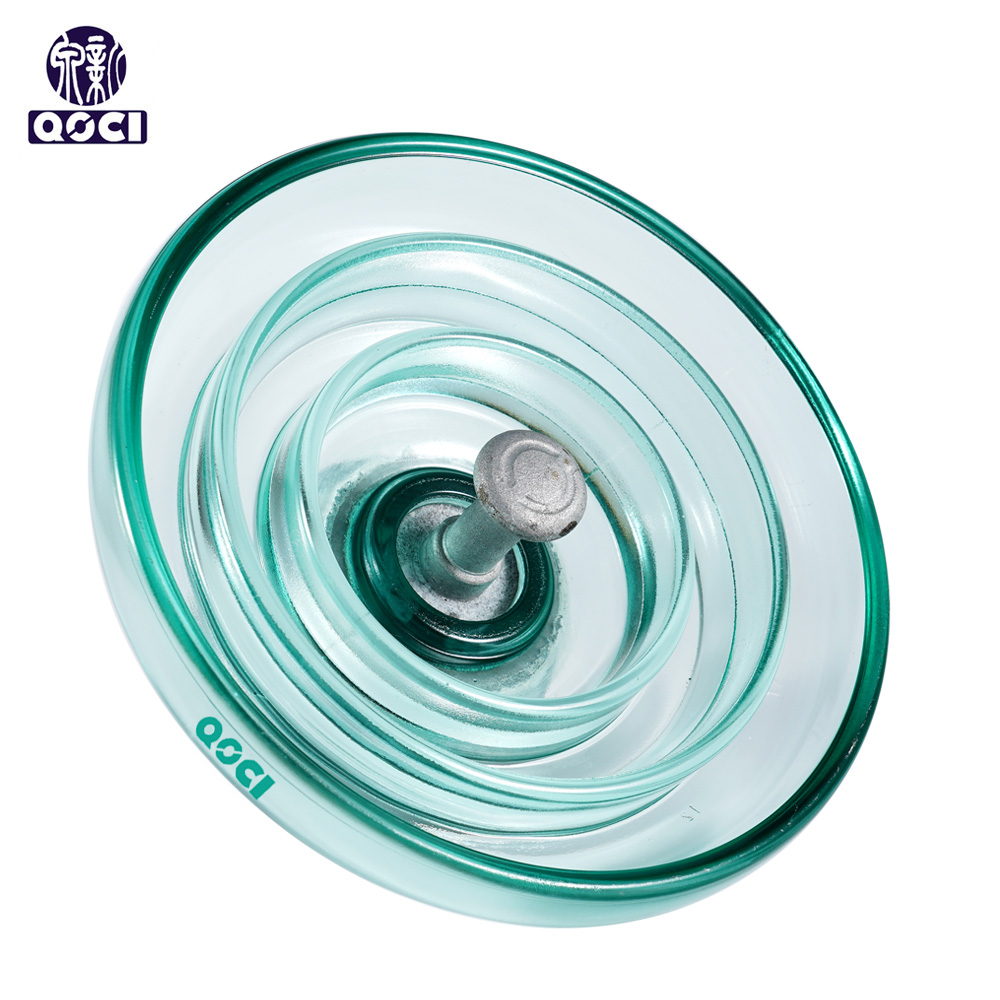

u160bl-23

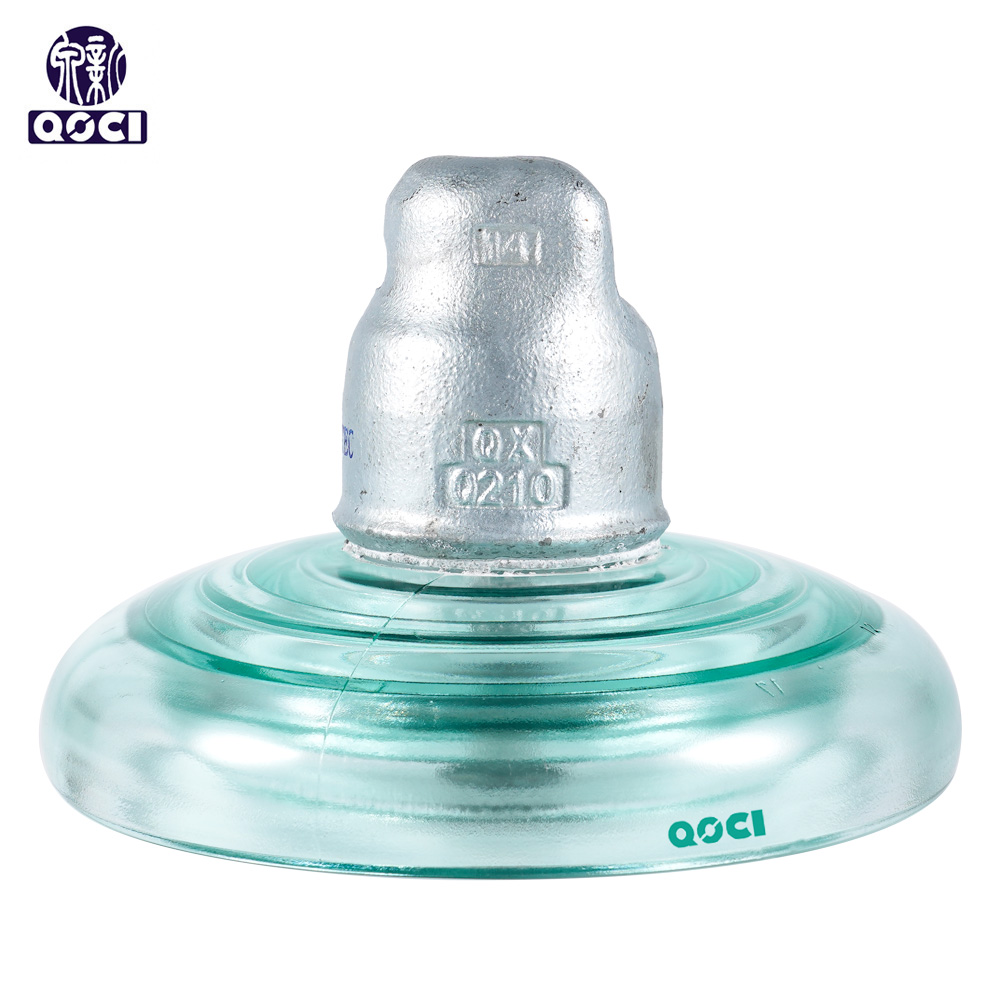

u160bl-22
