Suspension Glass Insulator

Name: "Suspension Glass Insulator"
Rating: 5 (232 reviews)

Quantity:

SKU: 2389278299

Model: U70BS

Product Details

Product Specification

Type	Disc Insulator, Cap-and-Pin Insulator, Transmission Line Glass Insulator	Model	U70BS
Params	Mechanical Failing Load:70kN Nominal Disc Diameter：255mm Nominal Spacing：127mm Creepage Distance：320mm Socket Coupling:16 Dry Lightning Impulse Withstand Voltage:100kV Wet Power Frequency Withstand Voltage:40kV Power Frequency Puncture Voltage:130kV	Material	Glass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable Industry	Power Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

70kN rated tempered glass insulator with standard creepage distance for normal-pollution areas. Ideal for medium-voltage transmission lines, offering self-blasting fault indication and hot-dip galvanized corrosion-resistant fittings.

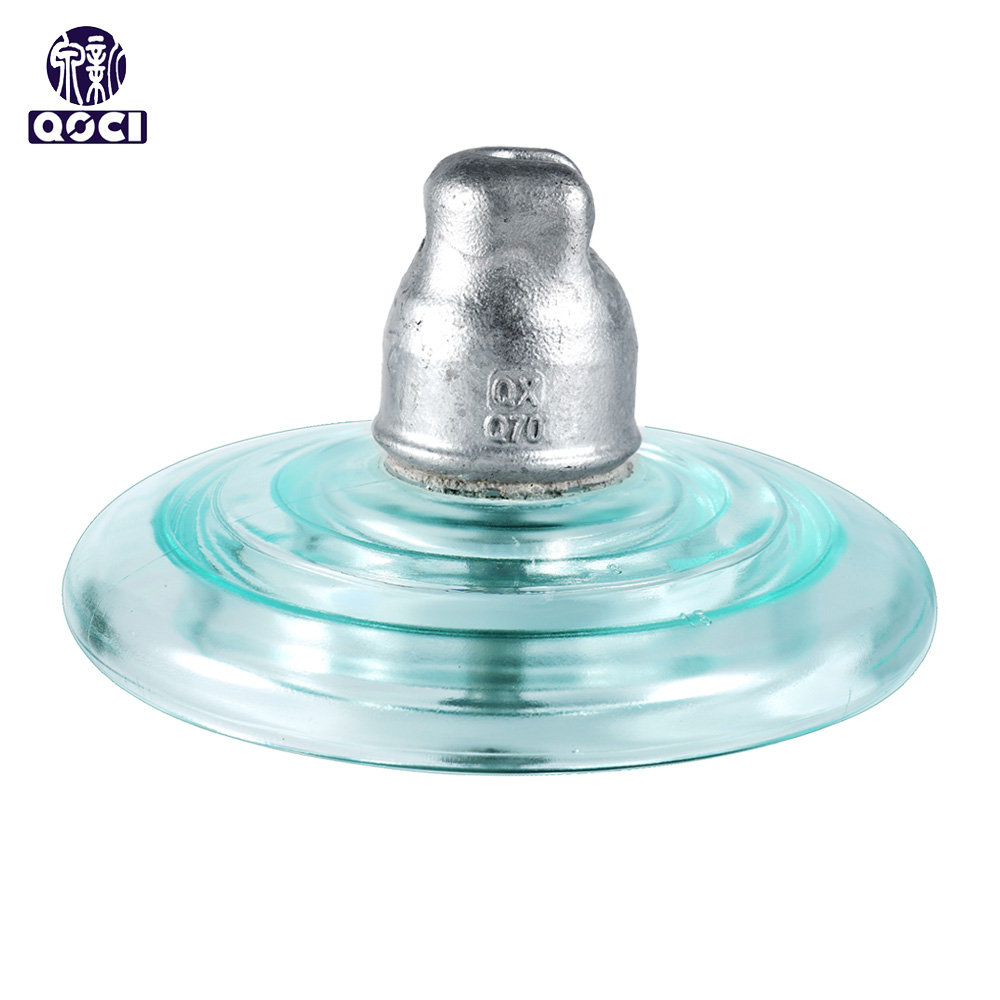

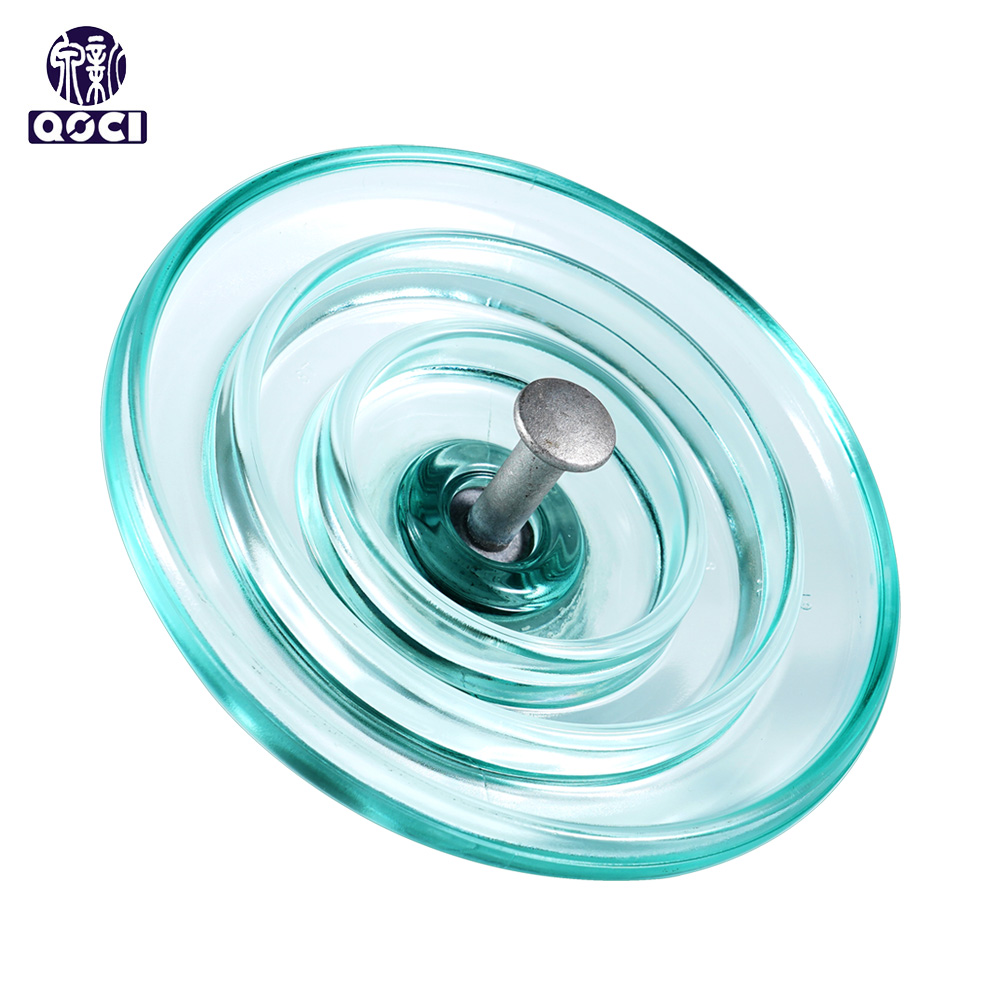

U70BS 70kN High Voltage cap and pin type Disc Suspension Toughened glass Insulator
