Suspension Glass Insulator

Name: "Suspension Glass Insulator"
Rating: 5 (535 reviews)

Quantity:

SKU: 9631741621

Model: U240B

Product Details

Product Specification

Type	Disc Insulator, Cap-and-Pin Insulator, Transmission Line Glass Insulator	Model	U240B
Params	Mechanical Failing Load:240kN Nominal Disc Diameter：280mm Nominal Spacing：170mm Creepage Distance：400mm Socket Coupling:20/24 Dry Lightning Impulse Withstand Voltage:110kV Wet Power Frequency Withstand Voltage:45kV Power Frequency Puncture Voltage:130kV	Material	Glass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable Industry	Power Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

240kN tempered glass insulator for UHV and extreme-load transmission line applications. Engineered for the highest mechanical demands on backbone transmission networks, with full corrosion protection and decades-long service life.

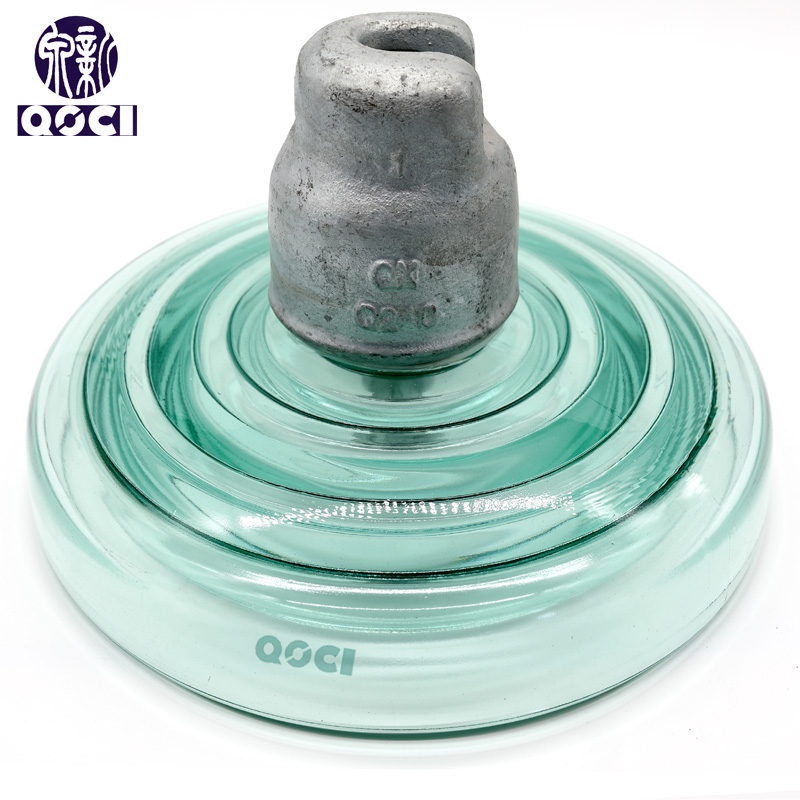

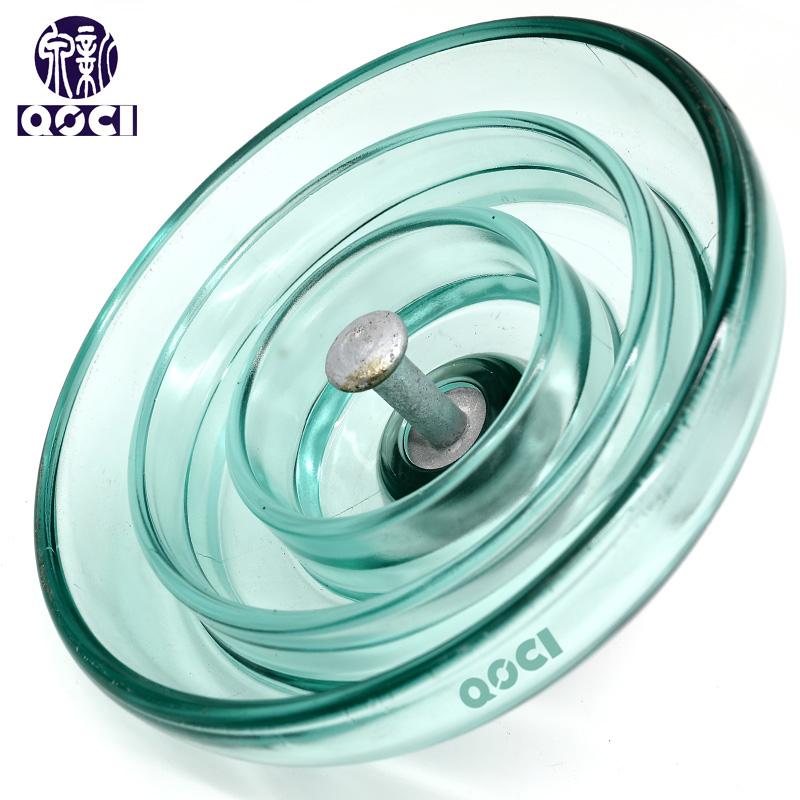

u240 glass insulator
