Suspension Glass Insulator

Name: "Suspension Glass Insulator"
Rating: 5 (778 reviews)

Quantity:

SKU: 6417308669

Model: U300B

Product Details

Product Specification

Type	Disc Insulator, Cap-and-Pin Insulator, Transmission Line Glass Insulator	Model	U300B
Params	Mechanical Failing Load:300kN Nominal Disc Diameter：320mm Nominal Spacing：195mm Creepage Distance：485mm Socket Coupling:24 Dry Lightning Impulse Withstand Voltage:130kV Wet Power Frequency Withstand Voltage:50kV Power Frequency Puncture Voltage:130kV	Material	Glass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable Industry	Power Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

300kN tempered glass insulator for ultra-high-voltage backbone transmission and crossing tower applications. Delivers industry-leading mechanical strength for the most demanding grid construction projects worldwide.

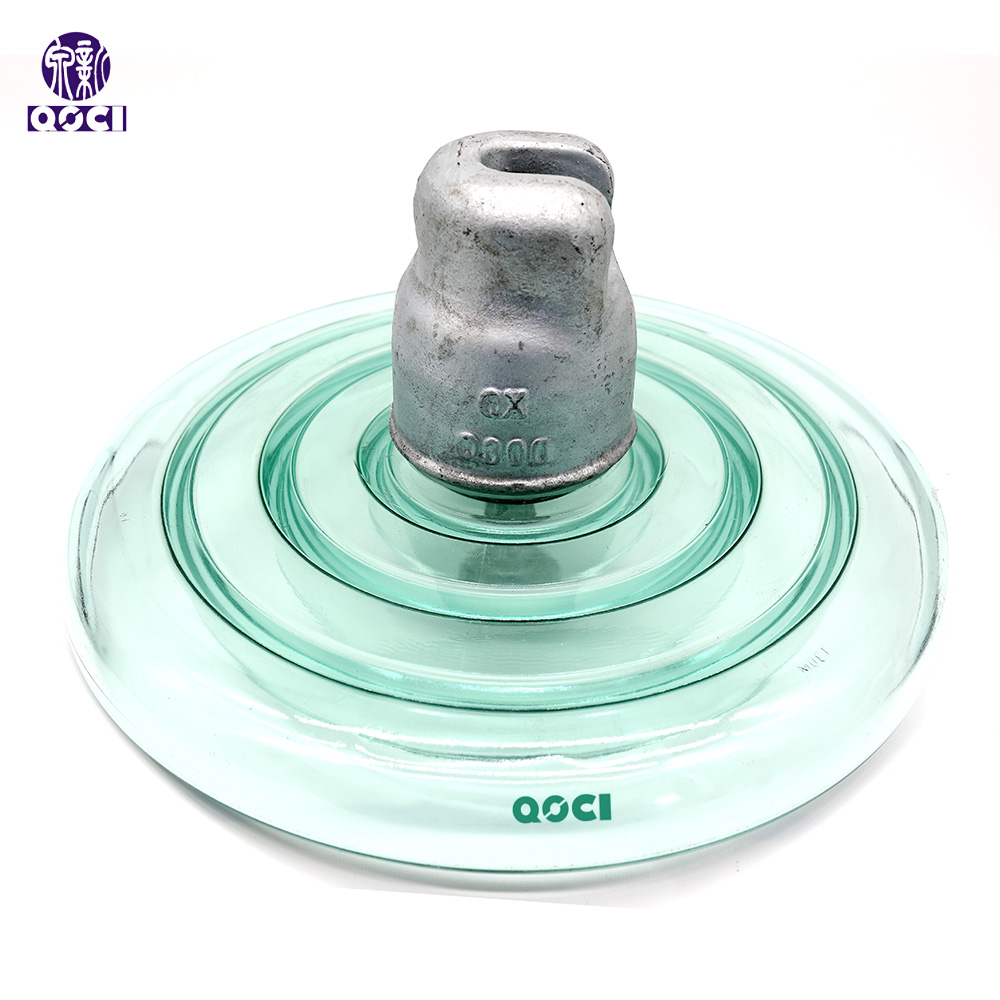

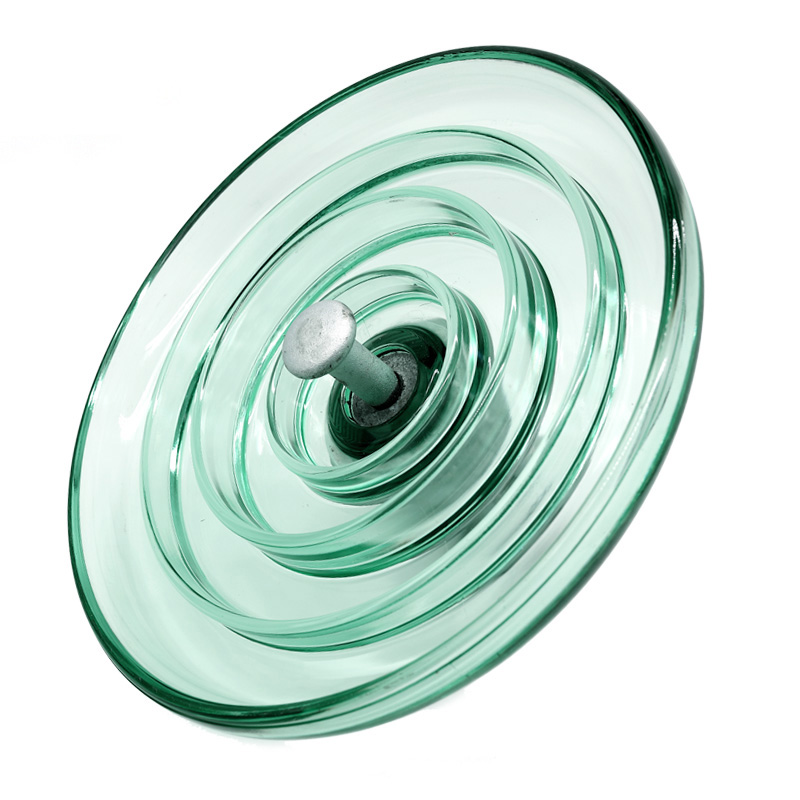

U300B-195-320-485 Suspension Glass Insulator
