Suspension Glass Insulator

Name: "Suspension Glass Insulator"
Rating: 5 (168 reviews)

Quantity:

SKU: 8783430814

Model: U70BA

Product Details

Product Specification

Type	Disc Insulator, Cap-and-Pin Insulator, Transmission Line Glass Insulator	Model	U70BA
Params	Mechanical Failing Load:70kN Nominal Disc Diameter：380mm Nominal Spacing：127/146mm Creepage Distance：365mm Socket Coupling:16 Dry Lightning Impulse Withstand Voltage:90kV Wet Power Frequency Withstand Voltage:45kV Power Frequency Puncture Voltage:130kV	Material	Glass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable Industry	Power Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

70kN mechanical load tempered glass insulator with long creepage distance and anti-fog treatment. Combines extended leakage path with hydrophobic surface for reliable operation in humid, light-to-moderate pollution zones.

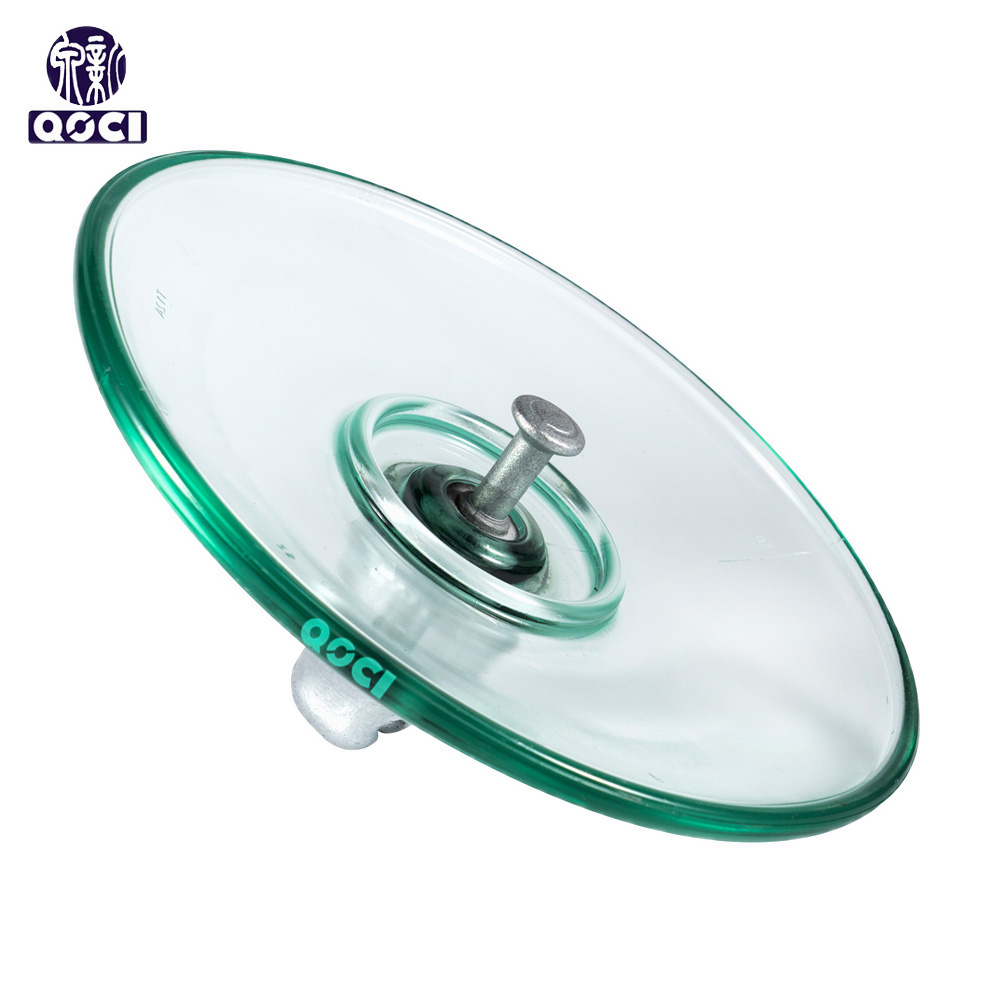

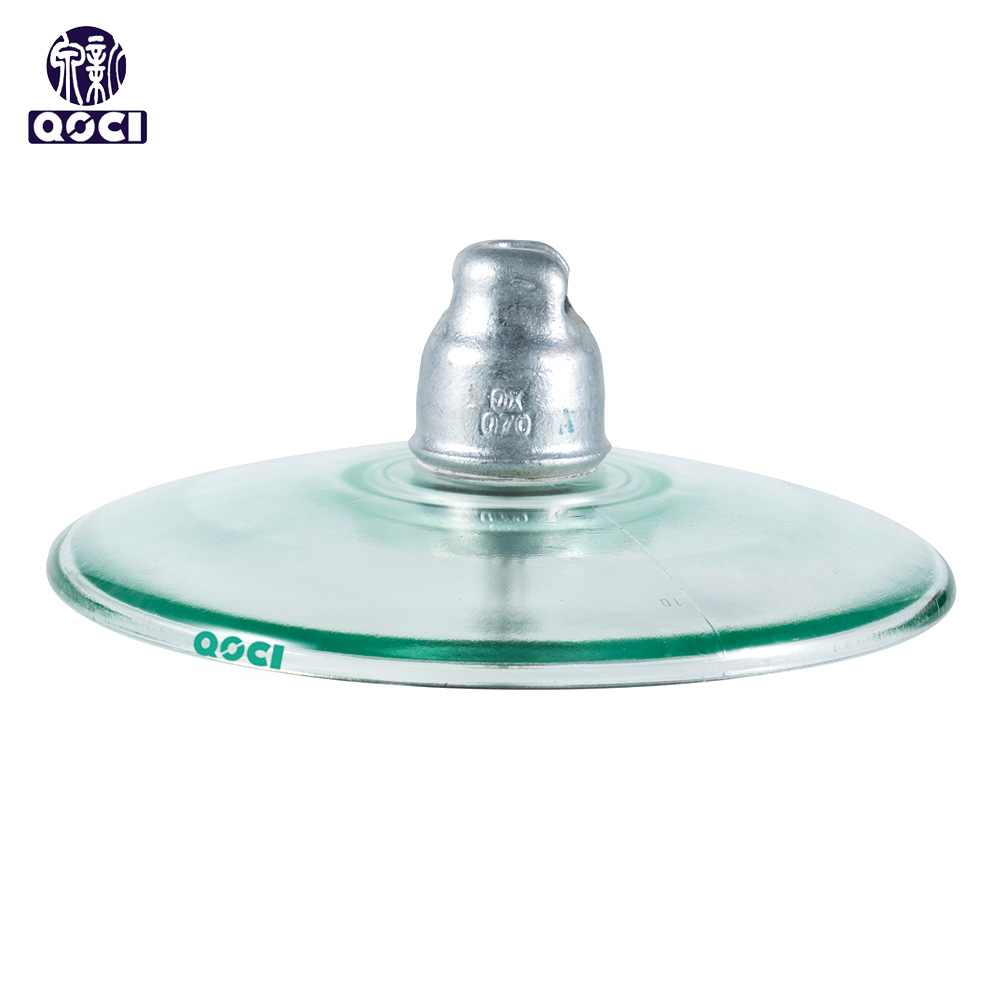

U70BA 70kN High Voltage cap and pin type AerodynamicSuspension Toughened glass Insulator
