Suspension Glass Insulator

Quantity:
SKU: 7303209182
Model: U100BA

{{ variable.name }}

{{ value.name }}
Product Details

Product Specification

TypeDisc Insulator, Cap-and-Pin Insulator, Transmission Line Glass InsulatorModelU100BA
ParamsMechanical Failing Load:100kN Nominal Disc Diameter：380mm Nominal Spacing：146mm Creepage Distance：365mm Socket Coupling:16 Dry Lightning Impulse Withstand Voltage:90kV Wet Power Frequency Withstand Voltage:45kV Power Frequency Puncture Voltage:130kVMaterialGlass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable IndustryPower Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

100kN mechanical load tempered glass insulator with long creepage and anti-fog surface treatment. Provides maximum pollution and moisture resistance for medium-voltage lines running through industrial or coastal regions.

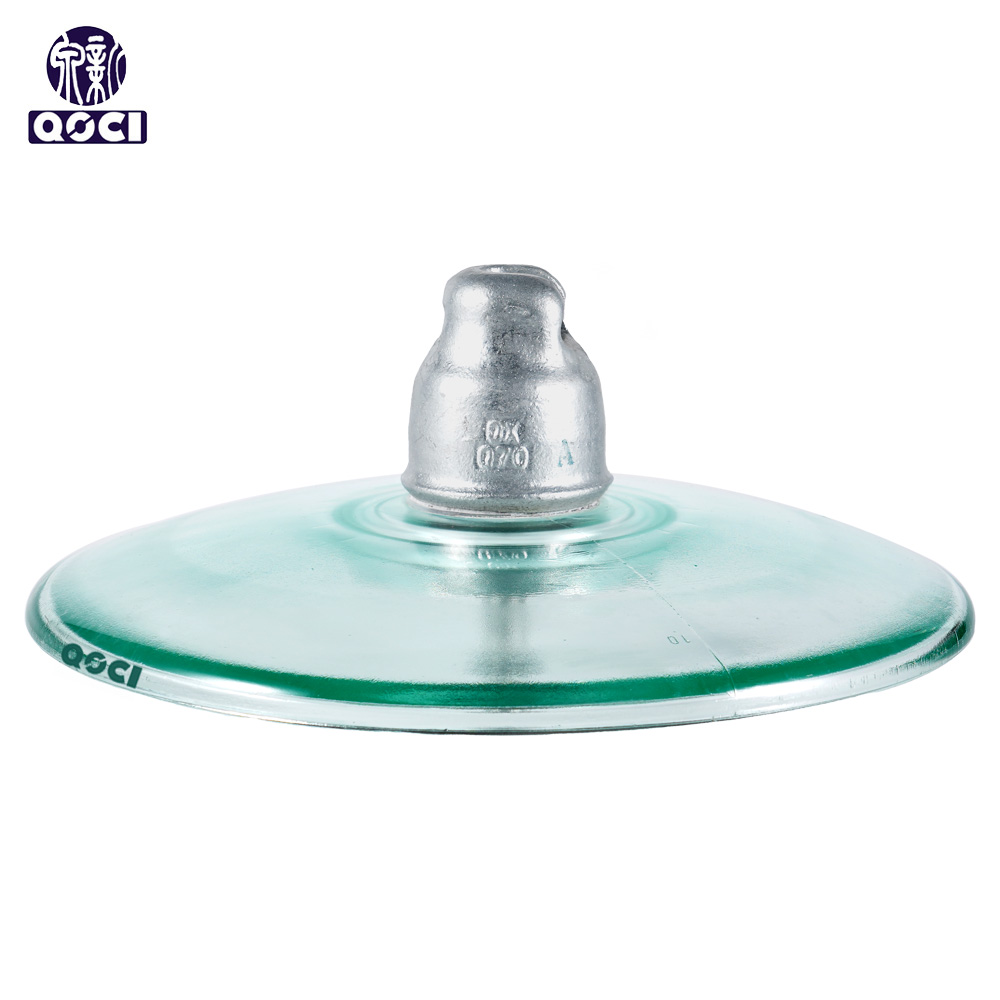

U100BA 100kN High Voltage Ball-Socket Type AerodynamicSuspension Tempered glass Insulator
