Suspension Glass Insulator

Quantity:
SKU: 0086312618
Model: U120BLA

{{ variable.name }}

{{ value.name }}
Product Details

Product Specification

TypeDisc Insulator, Cap-and-Pin Insulator, Transmission Line Glass InsulatorModelU120BLA
ParamsMechanical Failing Load:120kN Nominal Disc Diameter：380mm Nominal Spacing：146mm Creepage Distance：365mm Socket Coupling:16 Dry Lightning Impulse Withstand Voltage:90kV Wet Power Frequency Withstand Voltage:45kV Power Frequency Puncture Voltage:130kVMaterialGlass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable IndustryPower Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

120kN mechanical load tempered glass insulator offering long creepage plus anti-fog coating. Delivers superior performance in heavy-humidity and polluted high-voltage environments with demanding tension loads.

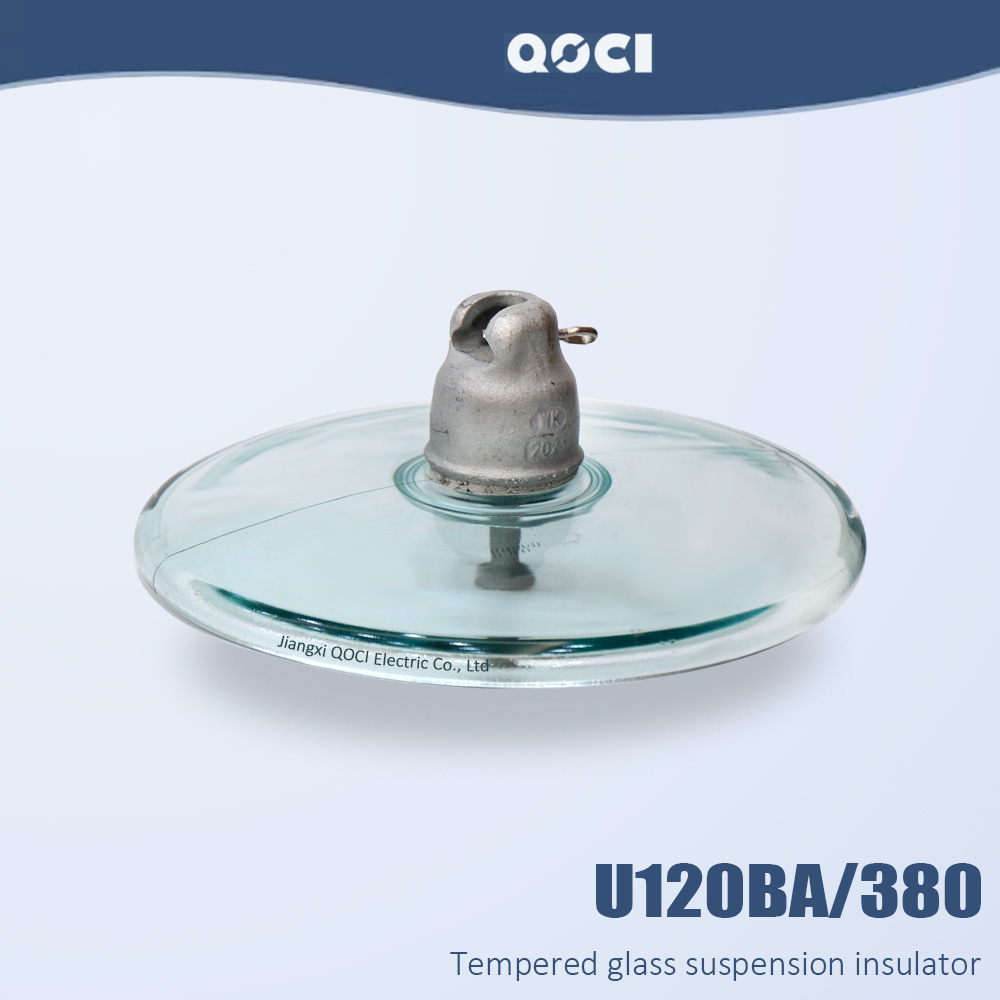

U120BA 120kN High Voltage cap and pin type AerodynamicSuspension Toughened glass Insulator

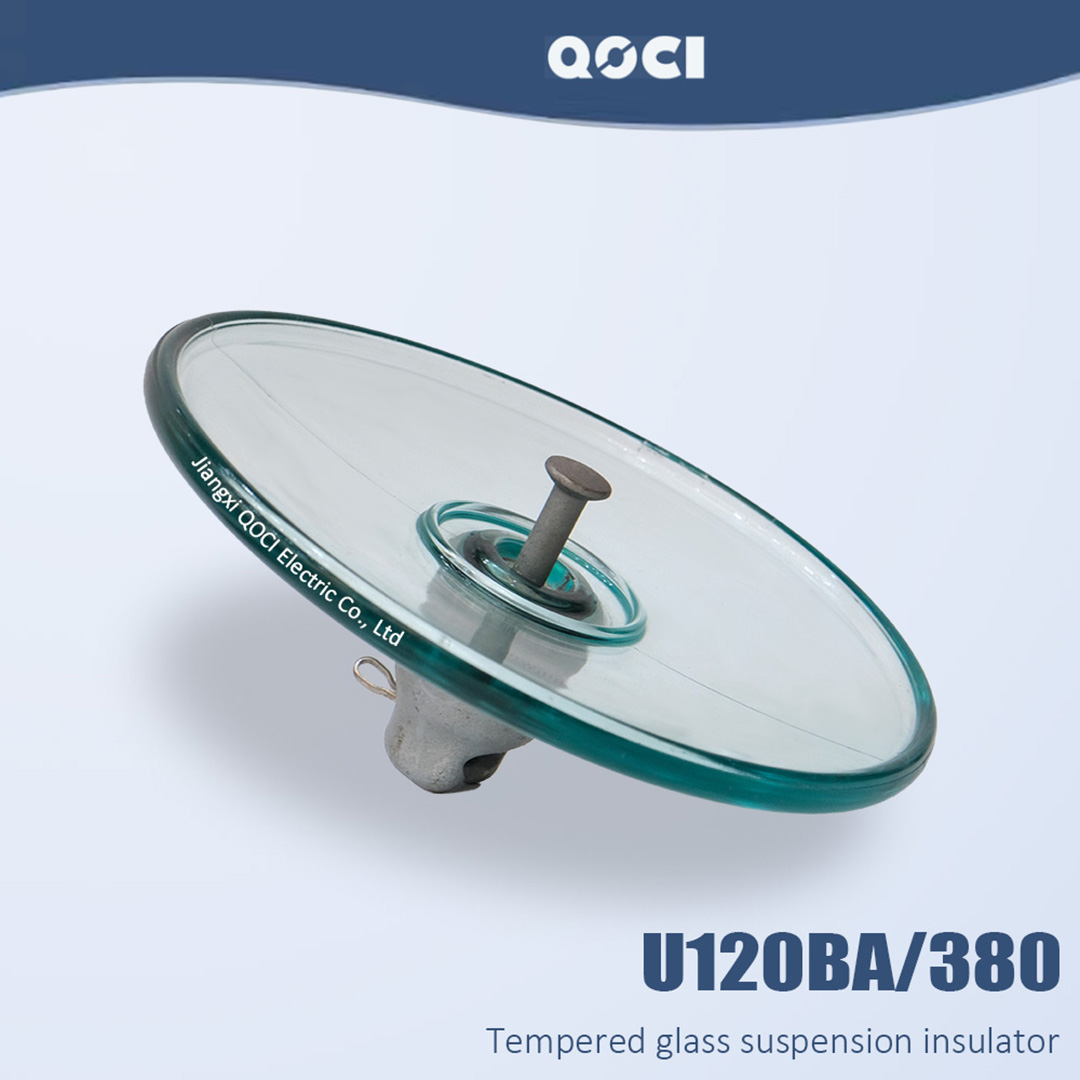

U120BA 120kN High Voltage cap and pin type AerodynamicSuspension Toughened glass Insulator


U120BA 120kN High Voltage cap and pin type AerodynamicSuspension Toughened glass Insulator

U120BA 120kN High Voltage cap and pin type AerodynamicSuspension Toughened glass Insulator
