Suspension Glass Insulator

Name: "Suspension Glass Insulator"
Rating: 5 (266 reviews)

Quantity:

SKU: 3304179321

Model: U160BSA

Product Details

Product Specification

Type	Disc Insulator, Cap-and-Pin Insulator, Transmission Line Glass Insulator	Model	U160BSA
Params	Mechanical Failing Load:160kN Nominal Disc Diameter：420mm Nominal Spacing：146mm Creepage Distance：380mm Socket Coupling:20 Dry Lightning Impulse Withstand Voltage:95kV Wet Power Frequency Withstand Voltage:50kV Power Frequency Puncture Voltage:130kV	Material	Glass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable Industry	Power Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

160kN mechanical load tempered glass insulator with standard creepage and anti-fog enhancement. Engineered for EHV projects where fog-prone weather demands additional surface protection alongside extreme mechanical strength.

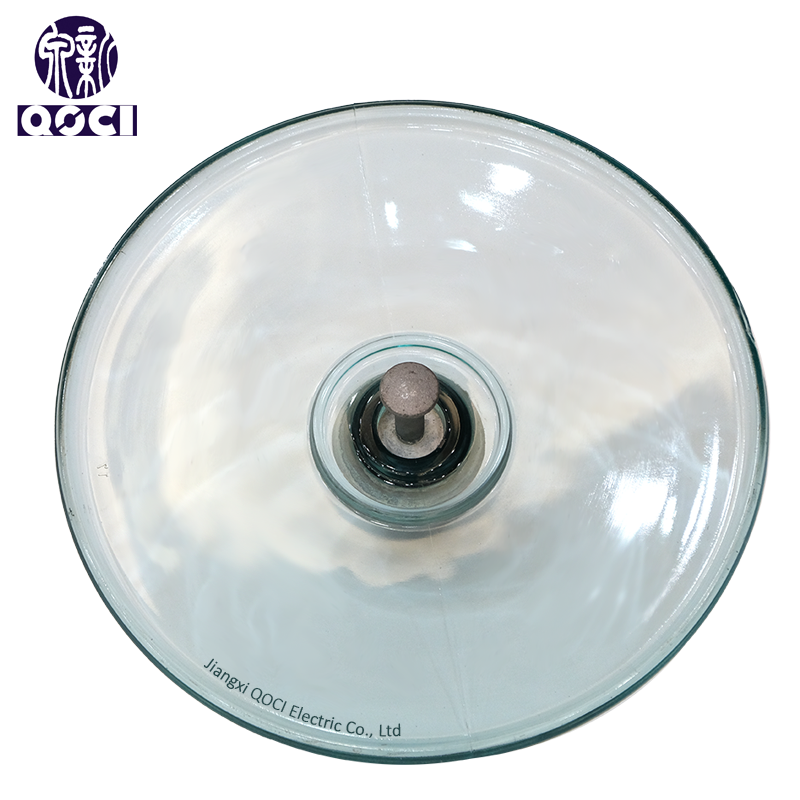

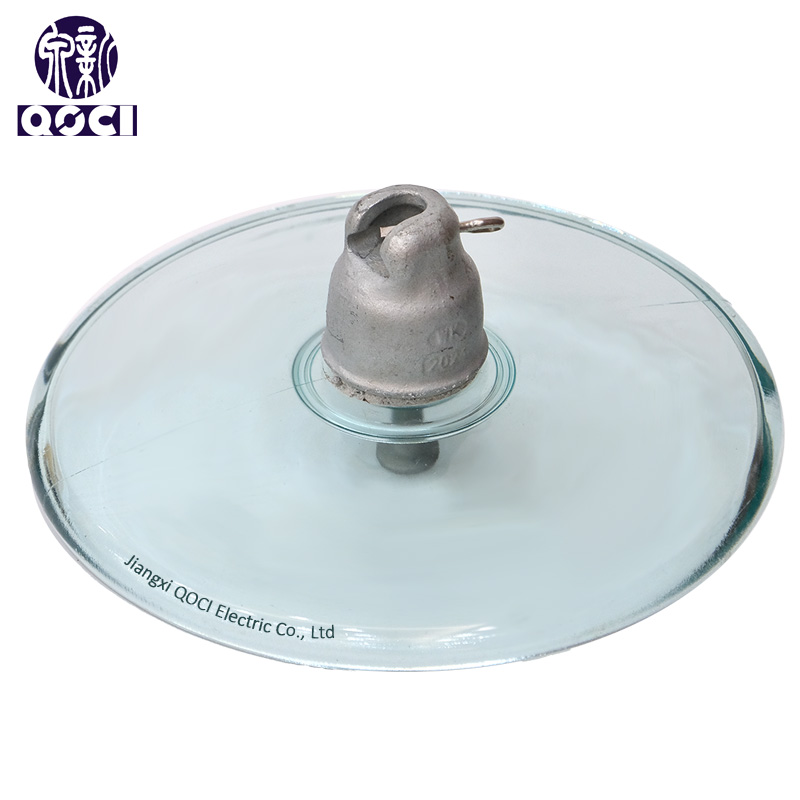

U160BSA 160kN High Voltage Ball-Socket Type AerodynamicSuspension Tempered glass Insulator
