Suspension Glass Insulator

Quantity:
SKU: 6726299443
Model: U210AD

{{ variable.name }}

{{ value.name }}
Product Details

Product Specification

TypeDisc Insulator, Cap-and-Pin Insulator, Transmission Line Glass InsulatorModelU210AD
ParamsMechanical Failing Load:210kN Nominal Disc Diameter：420mm Nominal Spacing：170mm Creepage Distance：380mm Socket Coupling:20 Dry Lightning Impulse Withstand Voltage:95kV Wet Power Frequency Withstand Voltage:50kV Power Frequency Puncture Voltage:130kVMaterialGlass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable IndustryPower Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

210kN mechanical load tempered glass insulator with aerodynamic disc profile for reduced wind load. Optimized for UHV transmission towers in typhoon or high-wind regions while maintaining full dielectric integrity.

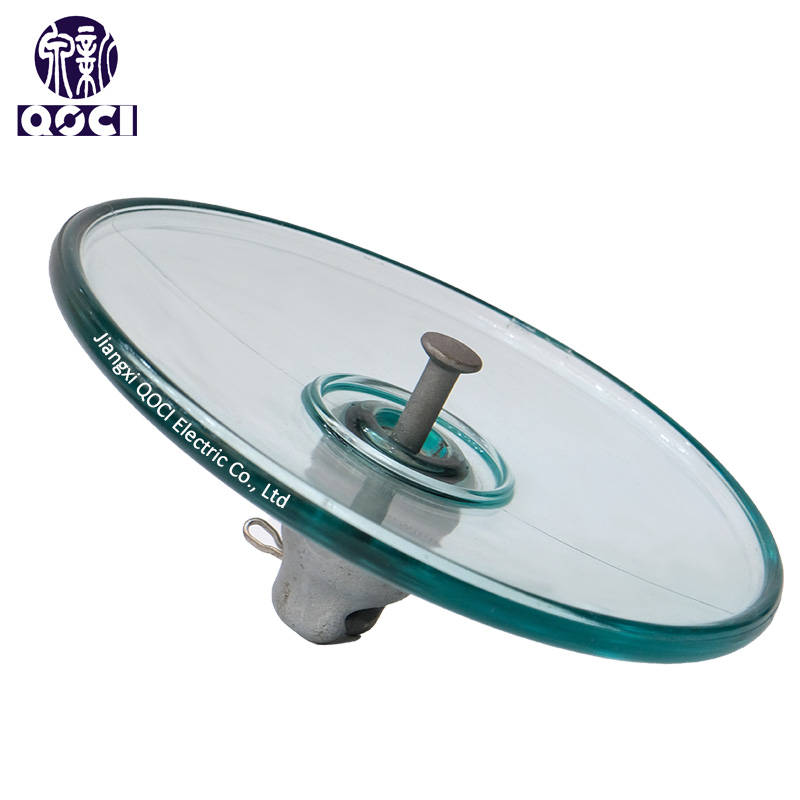

U210AD 210kN High Voltage cap and pin type AerodynamicSuspension Toughened glass Insulator

U210AD 210kN High Voltage cap and pin type AerodynamicSuspension Toughened glass Insulator

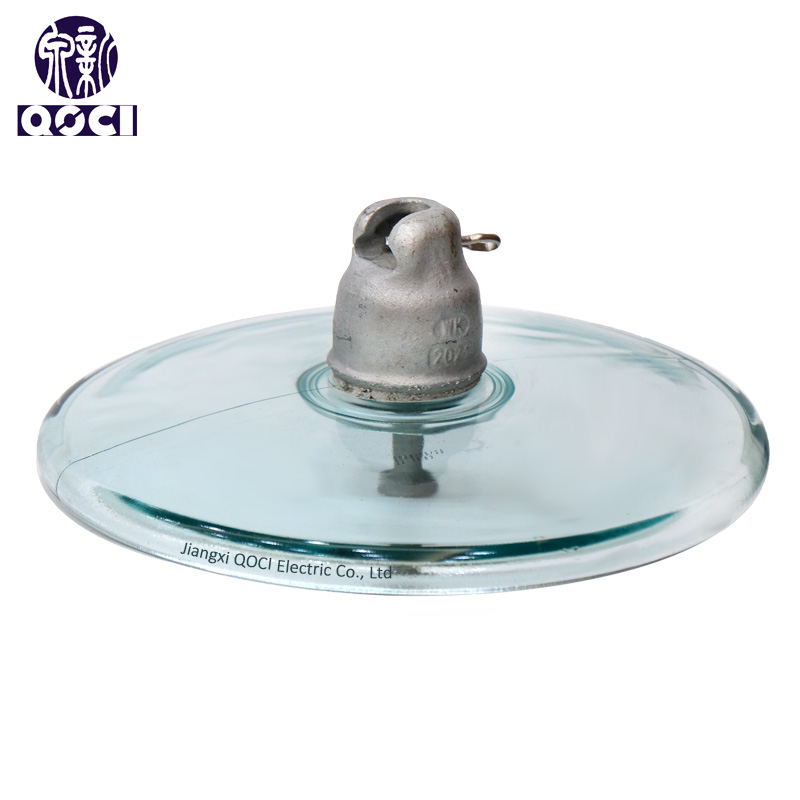

U210BA 210kN High Voltage cap and pin type AerodynamicSuspension Toughened glass Insulator

U210BA 210kN High Voltage cap and pin type AerodynamicSuspension Toughened glass Insulator
