Suspension Glass Insulator

Name: "Suspension Glass Insulator"
Rating: 5 (525 reviews)

Quantity:

SKU: 0269540032

Model: U70BLP

Product Details

Product Specification

Type	Disc Insulator, Cap-and-Pin Insulator, Transmission Line Glass Insulator	Model	U70BLP
Params	Mechanical Failing Load:70kN Nominal Disc Diameter：320mm Nominal Spacing：146mm Creepage Distance：550mm Socket Coupling:16 Dry Lightning Impulse Withstand Voltage:140kV Wet Power Frequency Withstand Voltage:55kV Power Frequency Puncture Voltage:130kV	Material	Glass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable Industry	Power Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

70kN mechanical load tempered glass insulator with long creepage and upgraded pin fitting variant. Offers improved mechanical engagement between pin and cement for added security in vibration-prone line sections.

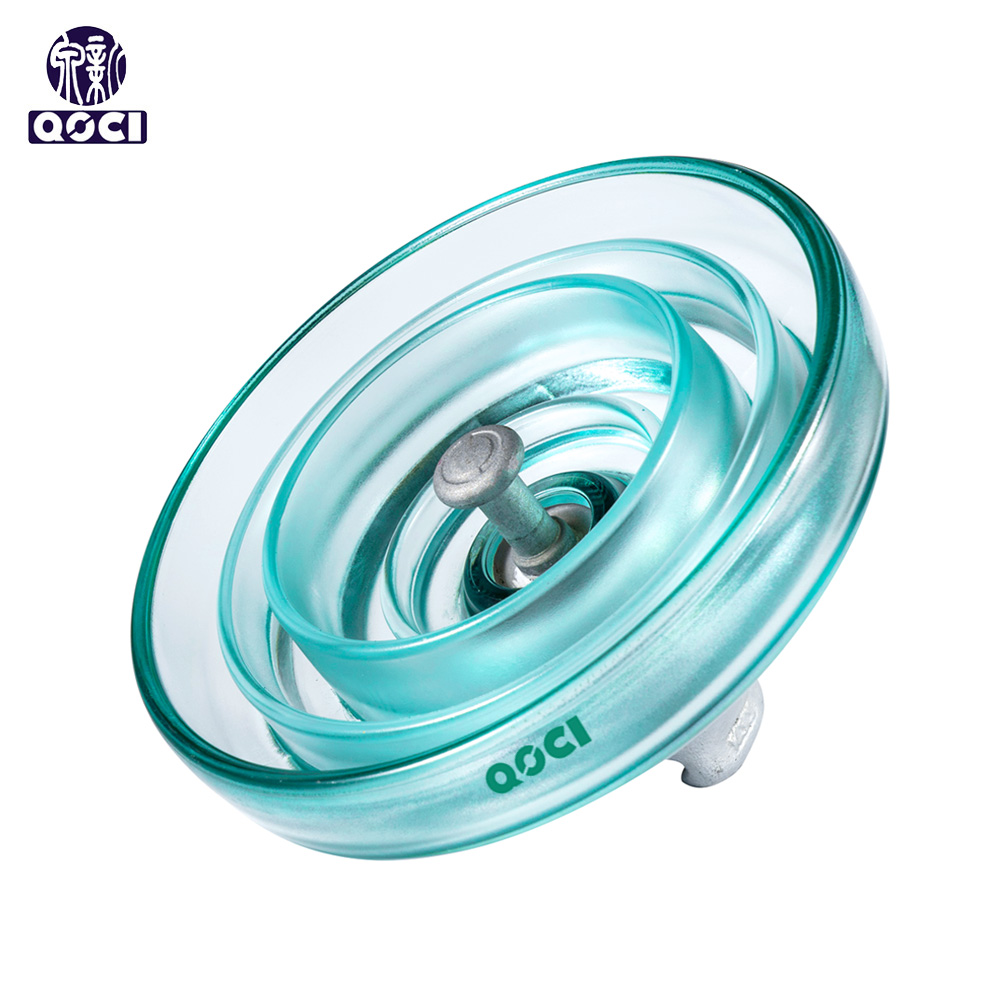

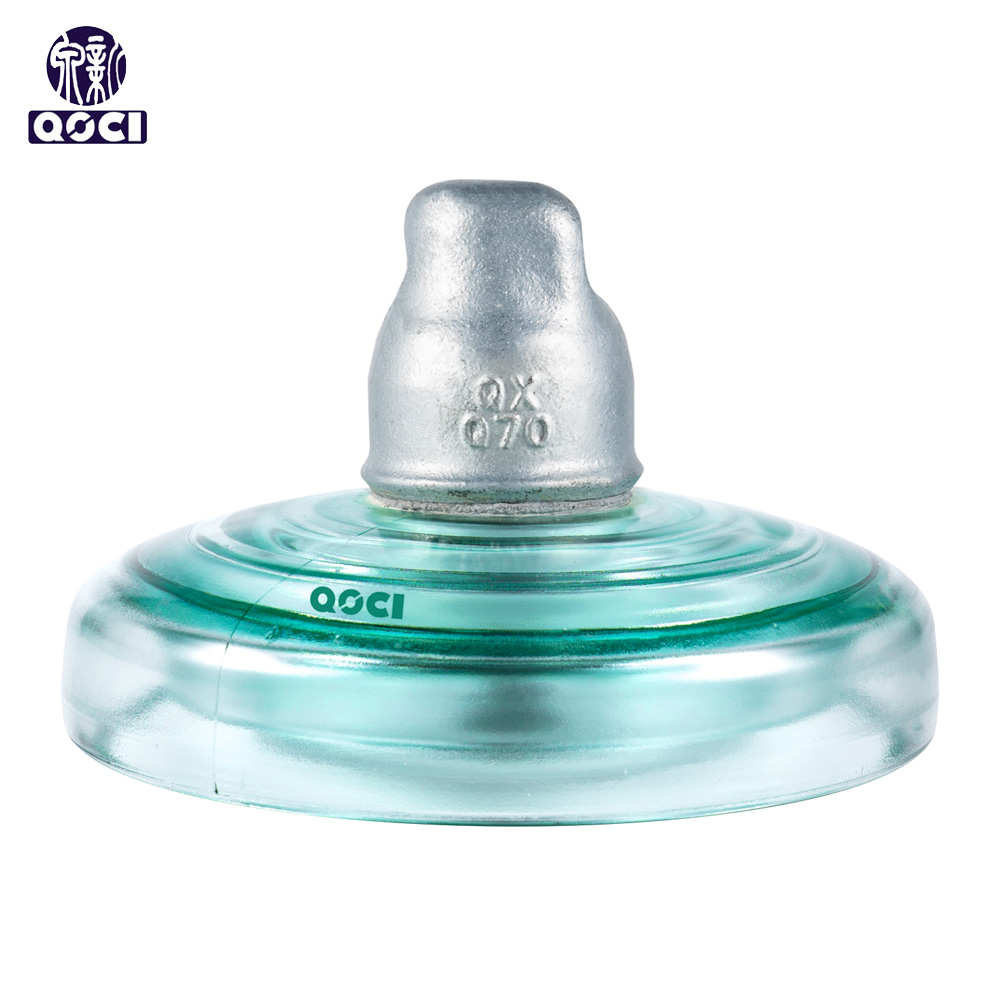

U70BLP 120kN High Voltage Ball-Socket Type Anti-Fog Suspension Toughened glass Insulator
