Suspension Glass Insulator

Name: "Suspension Glass Insulator"
Rating: 5 (326 reviews)

Quantity:

SKU: 7265647645

Model: U100BLP

Product Details

Product Specification

Type	Disc Insulator, Cap-and-Pin Insulator, Transmission Line Glass Insulator	Model	U100BLP
Params	Mechanical Failing Load:100kN Nominal Disc Diameter：320mm Nominal Spacing：146mm Creepage Distance：550mm Socket Coupling:16 Dry Lightning Impulse Withstand Voltage:140kV Wet Power Frequency Withstand Voltage:55kV Power Frequency Puncture Voltage:130kV	Material	Glass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable Industry	Power Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

100kN mechanical load tempered glass insulator with long creepage and enhanced pin configuration. Provides superior pull-out resistance and interface durability for medium-voltage lines under sustained heavy tension.

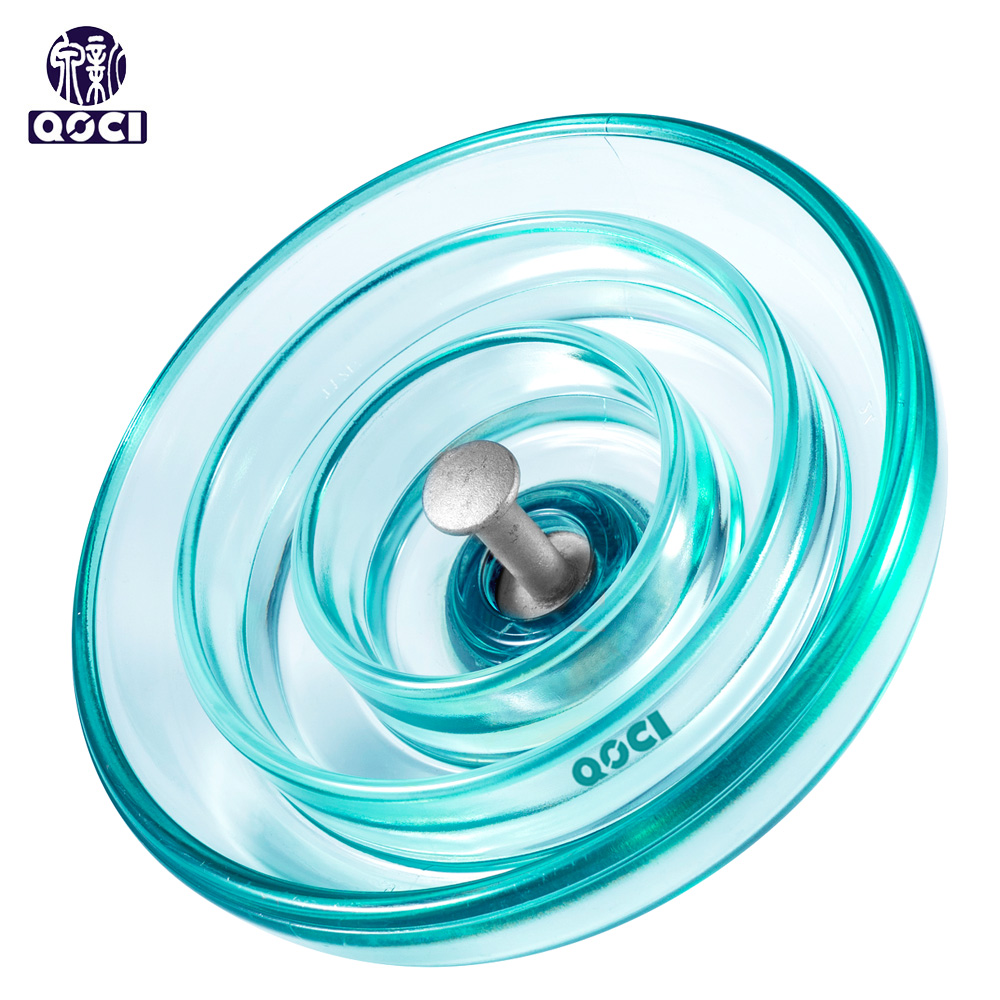

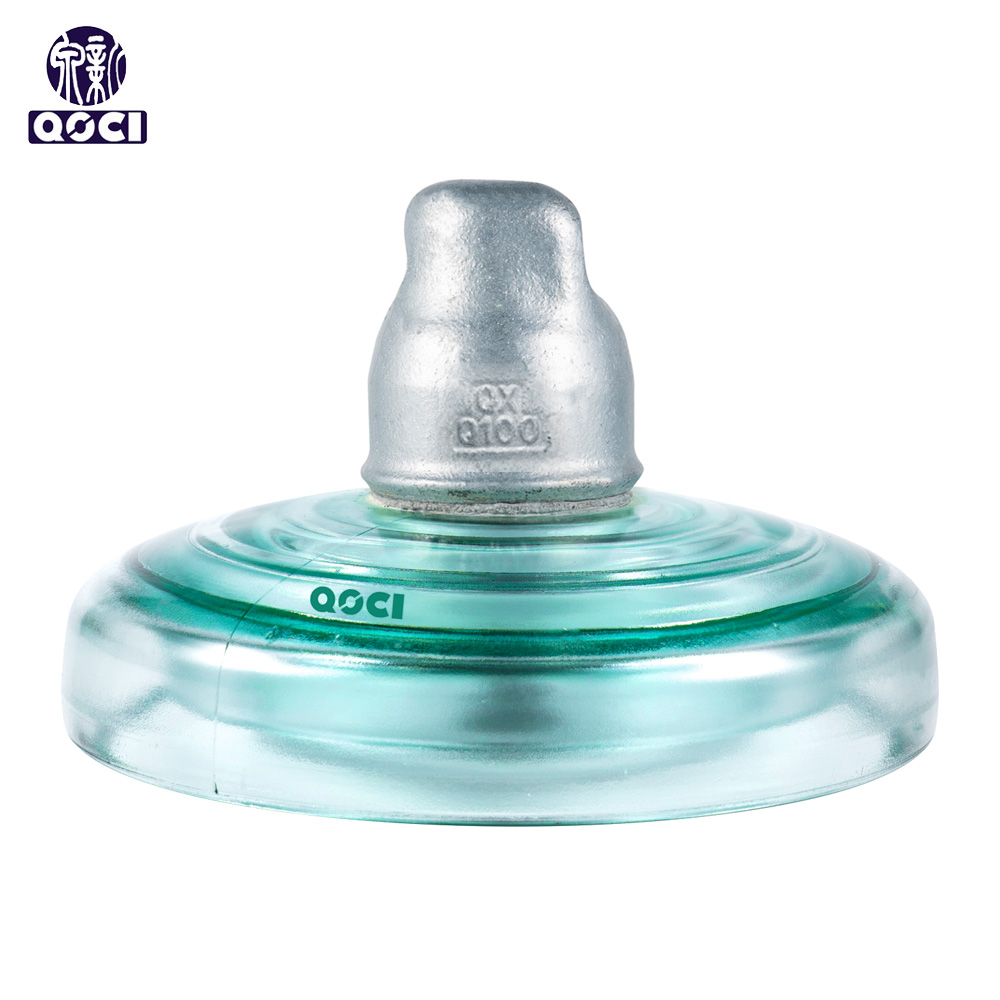

U100BLP 100kN High Voltage cap and pin type Fog Type Suspension Toughened glass Insulator
