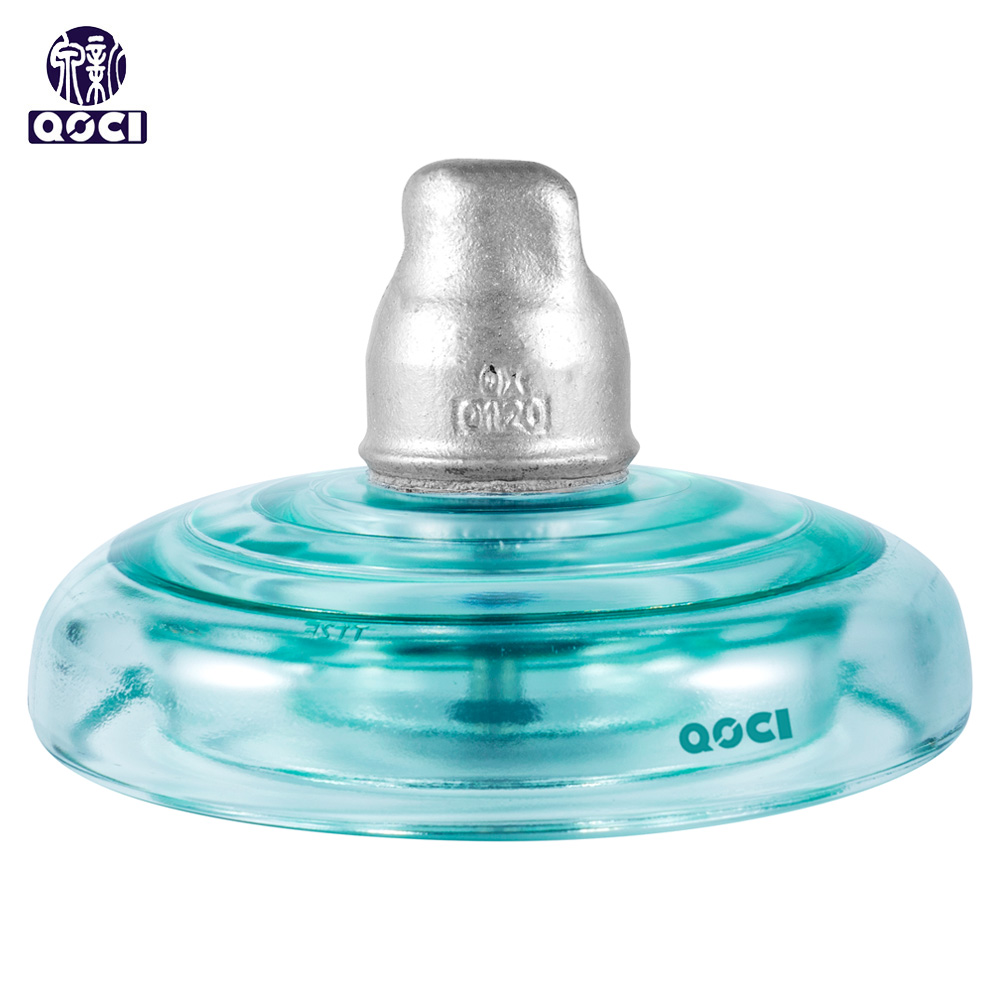

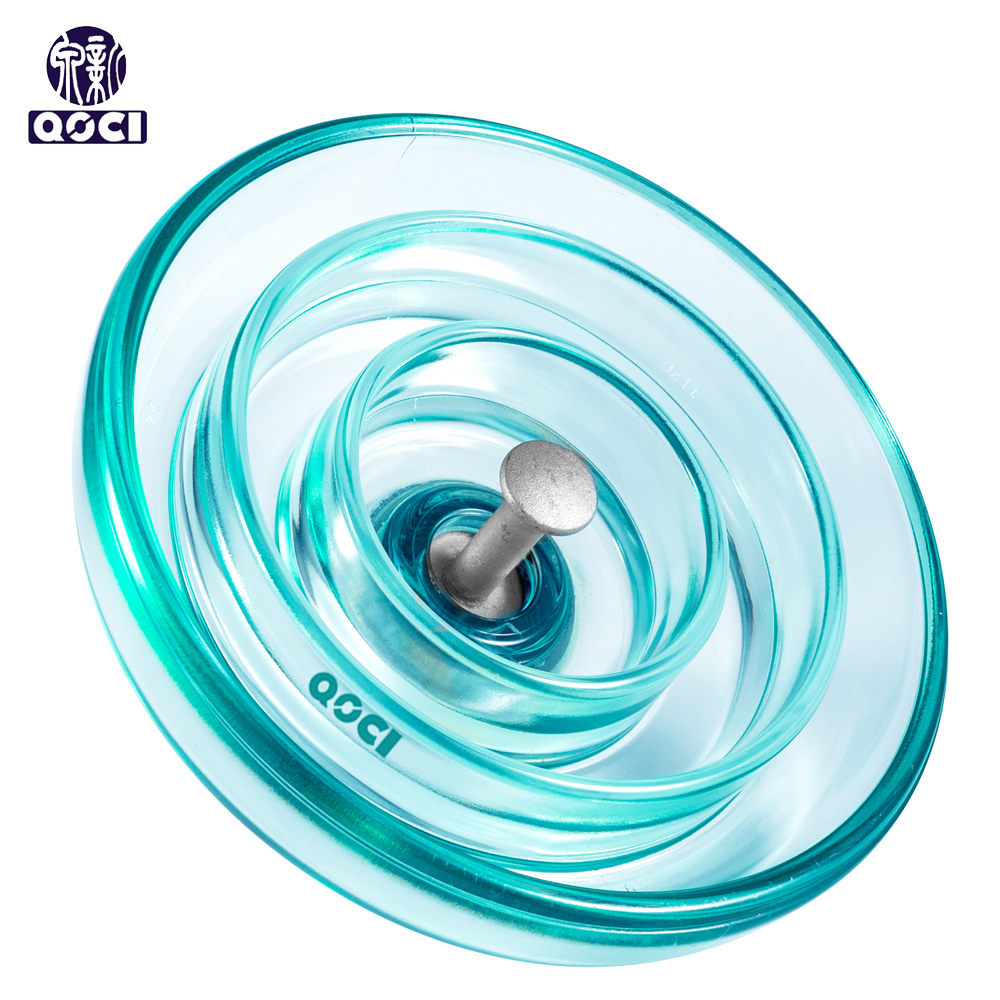

Suspension Glass Insulator

Name: "Suspension Glass Insulator"
Rating: 5 (773 reviews)

Quantity:

SKU: 287755886X

Model: U120BLP

Product Details

Product Specification

Type	Disc Insulator, Cap-and-Pin Insulator, Transmission Line Glass Insulator	Model	U120BLP
Params	Mechanical Failing Load:120kN Nominal Disc Diameter：280mm Nominal Spacing：146mm Creepage Distance：450mm Socket Coupling:16 Dry Lightning Impulse Withstand Voltage:125kV Wet Power Frequency Withstand Voltage:50kV Power Frequency Puncture Voltage:130kV	Material	Glass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable Industry	Power Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

120kN mechanical load tempered glass insulator with long creepage and zinc-sleeved pin. Designed for high-voltage lines in corrosive zones, delivering both pollution endurance and long-term fitting integrity.
