Suspension Glass Insulator

Quantity:
SKU: 7862343506
Model: U160BSP

{{ variable.name }}

{{ value.name }}
Product Details

Product Specification

TypeDisc Insulator, Cap-and-Pin Insulator, Transmission Line Glass InsulatorModelU160BSP
ParamsMechanical Failing Load:160kN Nominal Disc Diameter：320mm Nominal Spacing：146mm Creepage Distance：550mm Socket Coupling:20 Dry Lightning Impulse Withstand Voltage:140kV Wet Power Frequency Withstand Voltage:55kV Power Frequency Puncture Voltage:130kVMaterialGlass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable IndustryPower Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

160kN mechanical load tempered glass insulator with standard creepage and zinc-sleeved pin. Targets clean-to-moderate environments where corrosion resistance is the primary concern rather than extended leakage path.

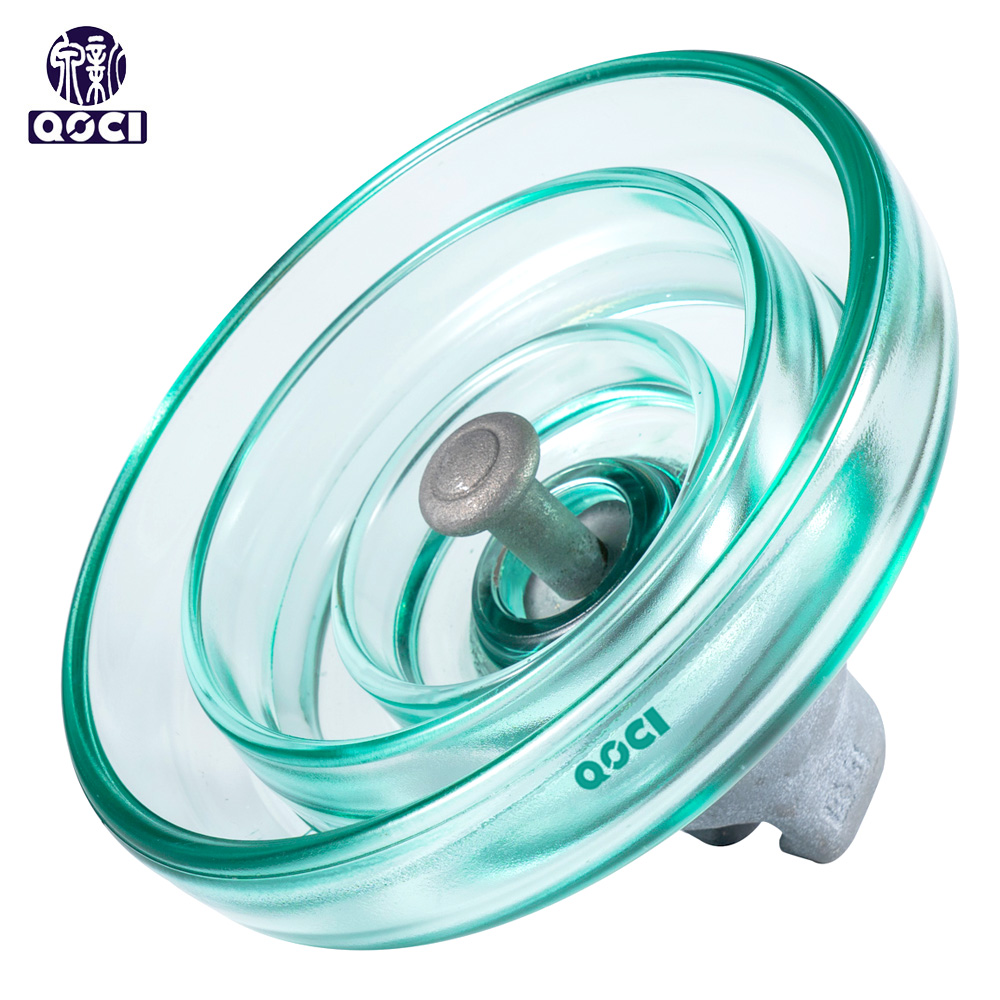

U160BSP GLASS INSULATOR

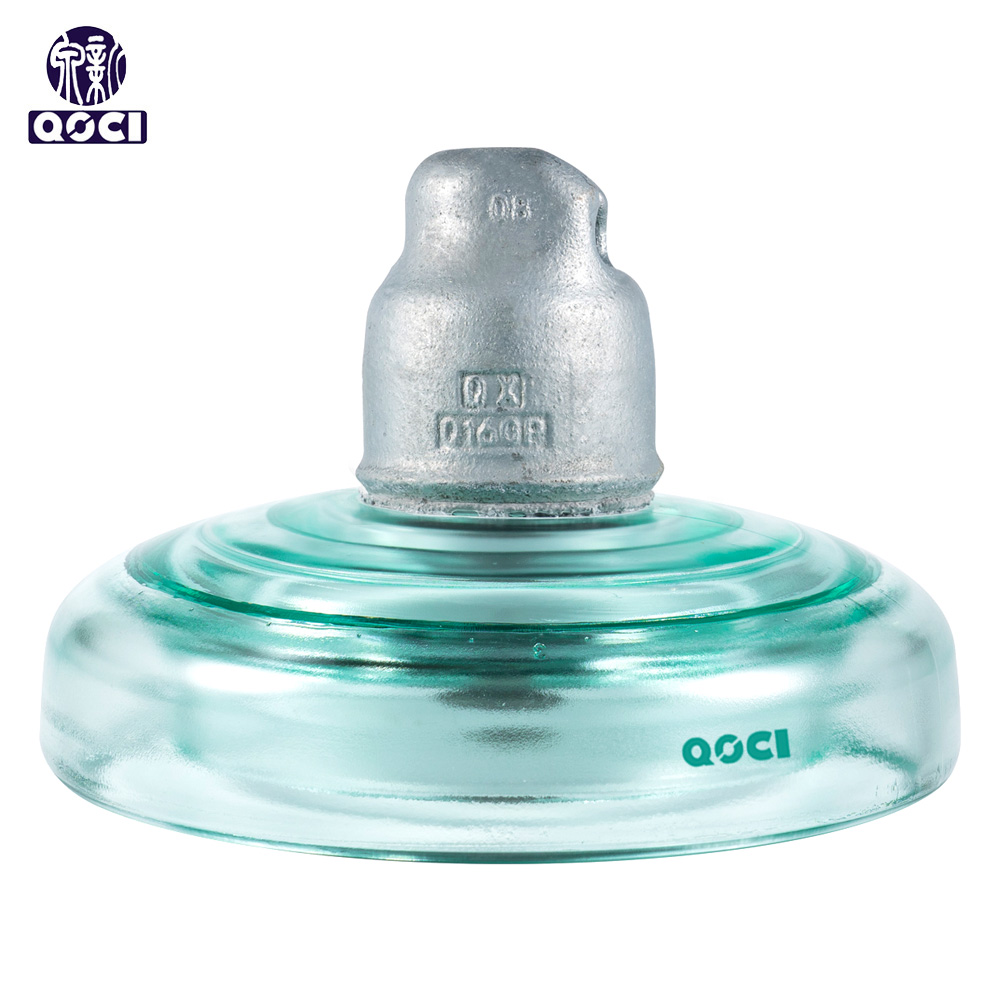

U160BSP GLASS INSULATOR


U160BSP GLASS INSULATOR

U160BSP GLASS INSULATOR
