Suspension Glass Insulator

Quantity:
SKU: 8615745773
Model: U160BLP

{{ variable.name }}

{{ value.name }}
Product Details

Product Specification

TypeDisc Insulator, Cap-and-Pin Insulator, Transmission Line Glass InsulatorModelU160BLP
ParamsMechanical Failing Load:160kN Nominal Disc Diameter：320mm Nominal Spacing：170mm Creepage Distance：550mm Socket Coupling:20 Dry Lightning Impulse Withstand Voltage:140kV Wet Power Frequency Withstand Voltage:55kV Power Frequency Puncture Voltage:130kVMaterialGlass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable IndustryPower Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

160kN mechanical load tempered glass insulator with long creepage and upgraded reinforced pin. Ultimate combination of pollution defense, corrosion protection and mechanical security for flagship EHV projects.

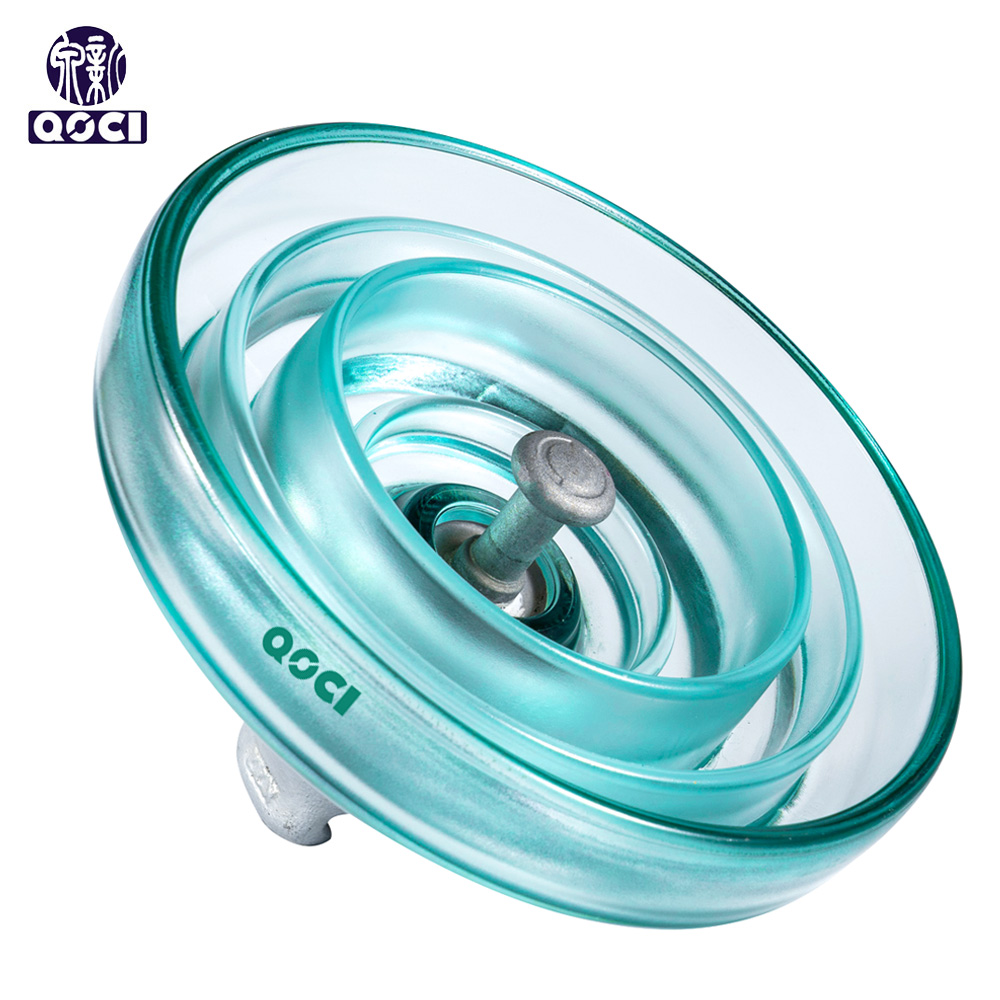

U160BP 160kN High Voltage cap and pin type Fog Type Suspension Toughened glass Insulator

U160BP 160kN High Voltage cap and pin type Fog Type Suspension Toughened glass Insulator


U160BP 160kN High Voltage cap and pin type Fog Type Suspension Toughened glass Insulator

U160BP 160kN High Voltage cap and pin type Fog Type Suspension Toughened glass Insulator
