Suspension Glass Insulator

Name: "Suspension Glass Insulator"
Rating: 5 (708 reviews)

Quantity:

SKU: 0163768633

Model: U420BP

Product Details

Product Specification

Type	Disc Insulator, Cap-and-Pin Insulator, Transmission Line Glass Insulator	Model	U420BP
Params	Mechanical Failing Load:420kN Nominal Disc Diameter：380mm Nominal Spacing：205mm Creepage Distance：620mm Socket Coupling:28 Dry Lightning Impulse Withstand Voltage:140kV Wet Power Frequency Withstand Voltage:55kV Power Frequency Puncture Voltage:140kV	Material	Glass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable Industry	Power Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

420kN mechanical load tempered glass insulator with zinc-sleeved pin for special heavy-duty UHV applications. Extreme mechanical capacity with full corrosion protection for river-crossing, mountain-spanning and strategic interconnection projects.

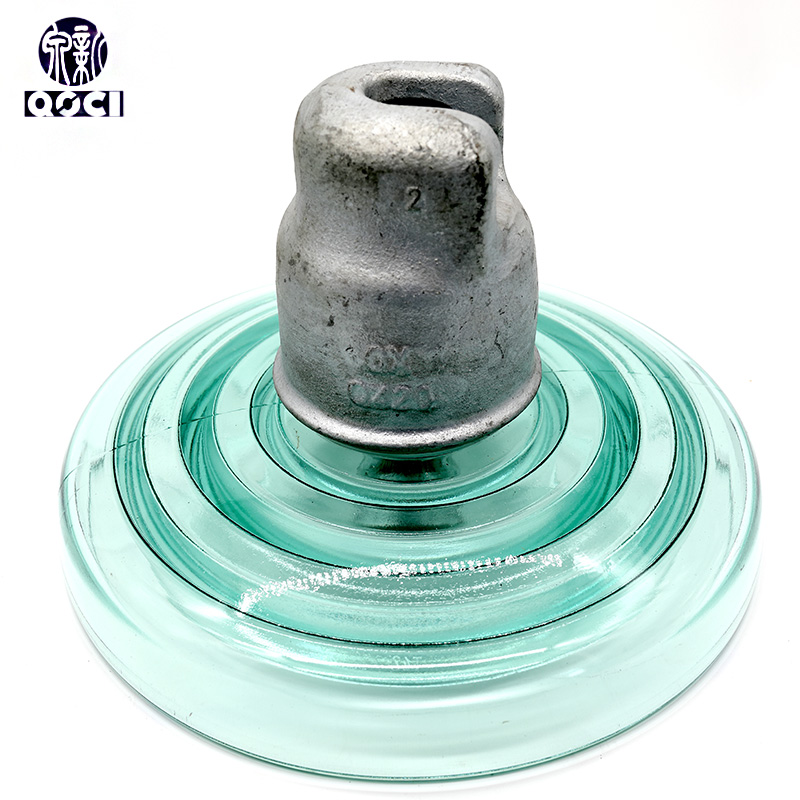

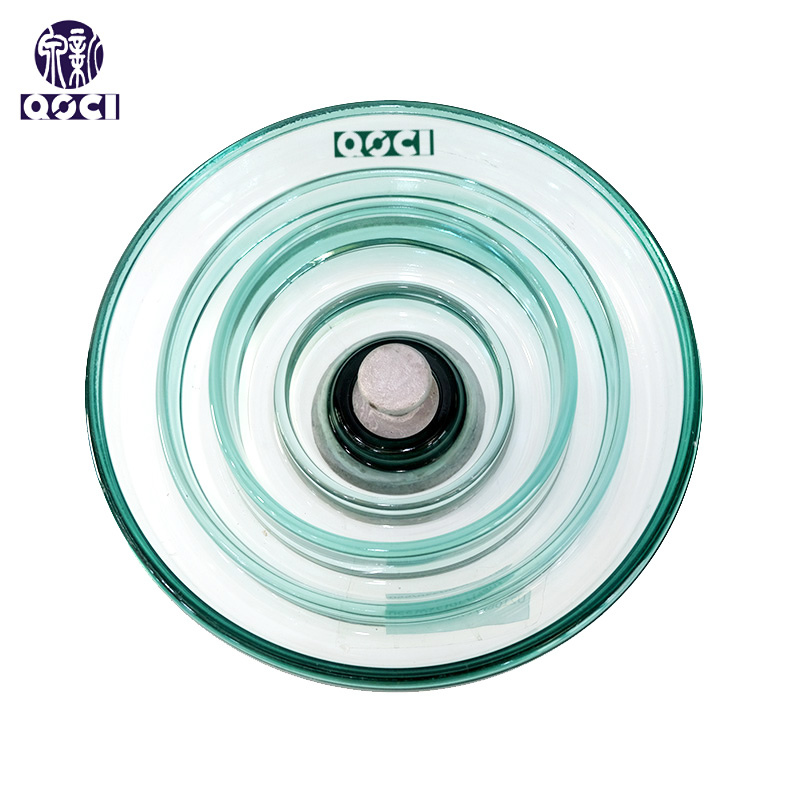

U420BP 420kN High Voltage Fog Type Suspension Toughened glass Insulator
