Suspension Glass Insulator

Quantity:
SKU: 7245667055
Model: U160BLD

{{ variable.name }}

{{ value.name }}
Product Details

Product Specification

TypeDisc Insulator, Cap-and-Pin Insulator, Transmission Line Glass InsulatorModelU160BLD
ParamsMechanical Failing Load:160kN Nominal Disc Diameter：340mm Nominal Spacing：170mm Creepage Distance：550mm Socket Coupling:20 Dry Lightning Impulse Withstand Voltage:130kV Wet Power Frequency Withstand Voltage:50kV Power Frequency Puncture Voltage:130kVMaterialGlass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable IndustryPower Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

160kN mechanical load tempered glass insulator with long creepage and double-shed design. Maximum shed density combined with extended creepage delivers best-in-class anti-pollution performance for the toughest EHV environmental challenges.

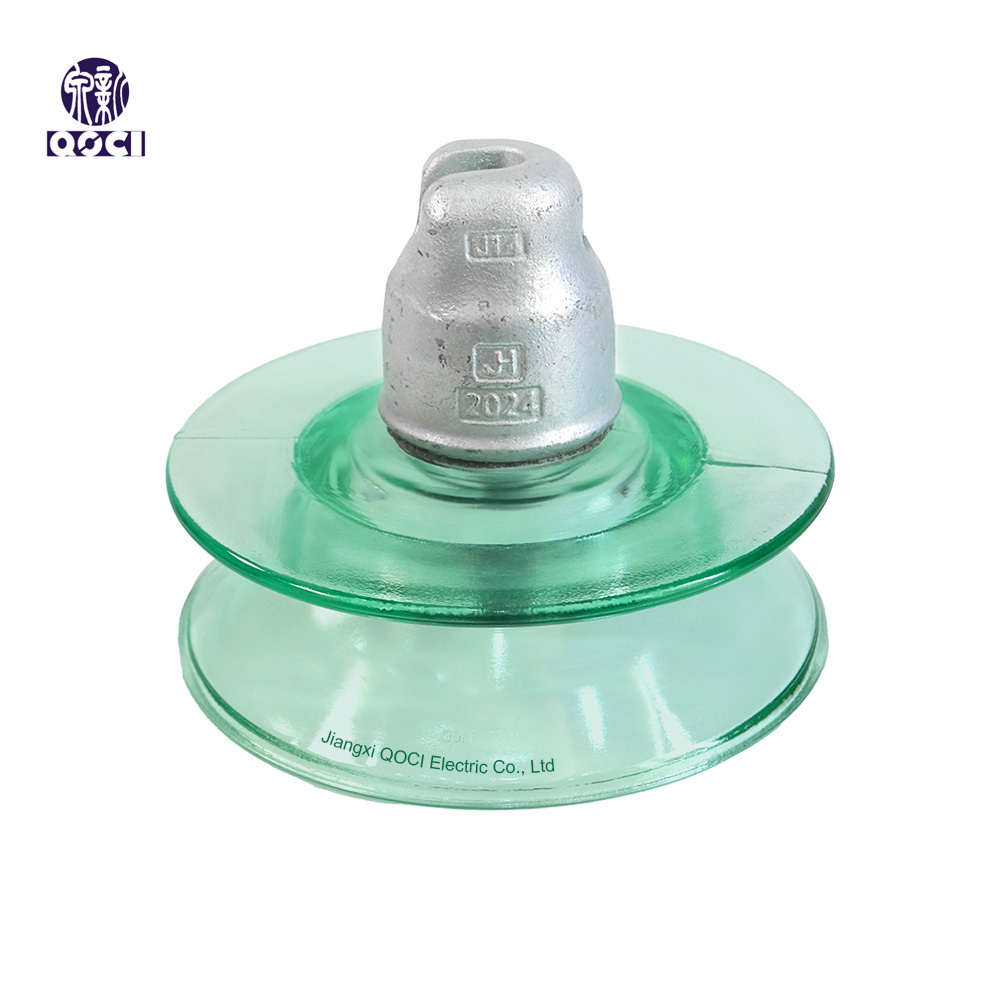

U160BD 160kN High Voltage cap and pin type Double Shed Suspension Toughened glass Insulator

U160BD 160kN High Voltage cap and pin type Double Shed Suspension Toughened glass Insulator

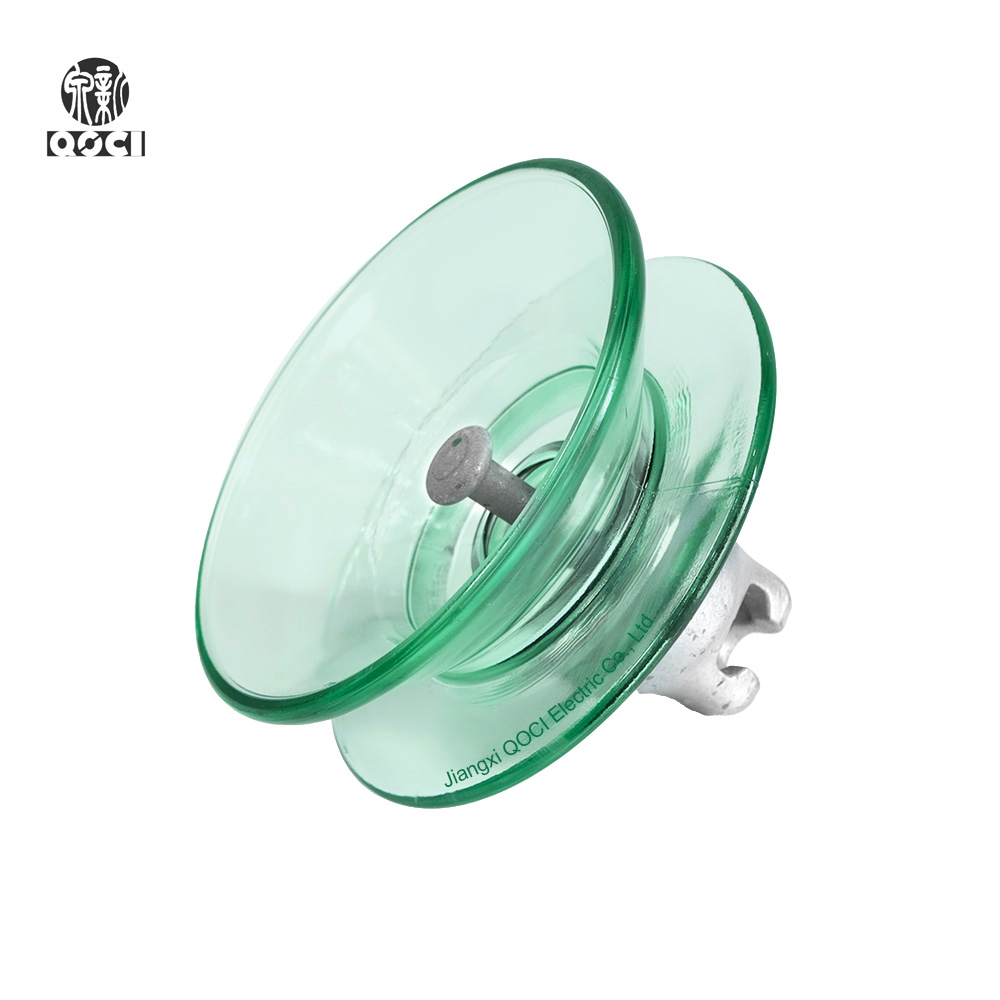

U160BD 160kN High Voltage cap and pin type Two-Winged Suspension Toughened glass Insulator

U160BD 160kN High Voltage cap and pin type Two-Winged Suspension Toughened glass Insulator
