Suspension Glass Insulator

Quantity:
SKU: 6674254851
Model: U210BD

{{ variable.name }}

{{ value.name }}
Product Details

Product Specification

TypeDisc Insulator, Cap-and-Pin Insulator, Transmission Line Glass InsulatorModelU210BD
ParamsMechanical Failing Load:210kN Nominal Disc Diameter：300mm Nominal Spacing：170mm Creepage Distance：450mm Socket Coupling:20/24 Dry Lightning Impulse Withstand Voltage:120kV Wet Power Frequency Withstand Voltage:45kV Power Frequency Puncture Voltage:130kVMaterialGlass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable IndustryPower Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

210kN mechanical load tempered glass insulator with double-shed disc profile for UHV applications. Aerodynamic multi-shed geometry reduces contamination accumulation while maintaining full mechanical and electrical capacity.

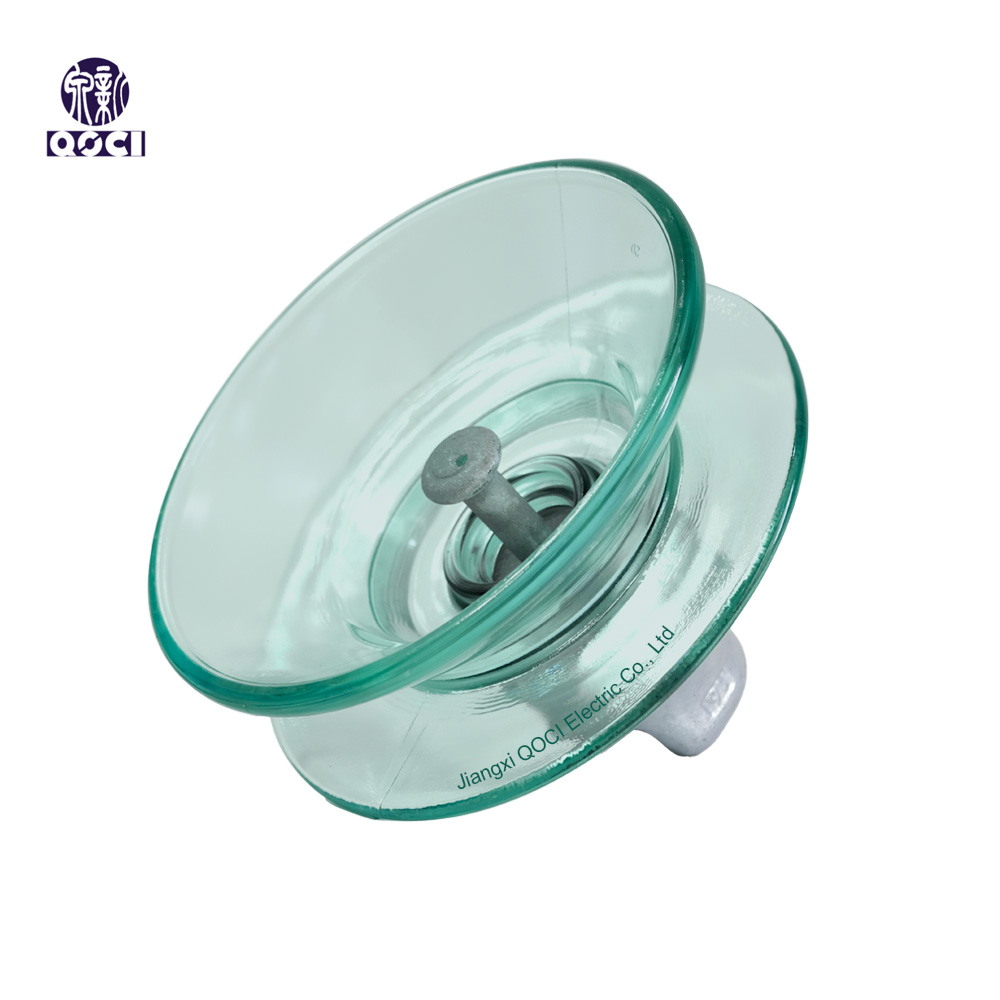

U210BD 210kN High Voltage Ball And Socket Type Double Shed Suspension Tempered glass Insulator

U210BD 210kN High Voltage Ball And Socket Type Double Shed Suspension Tempered glass Insulator

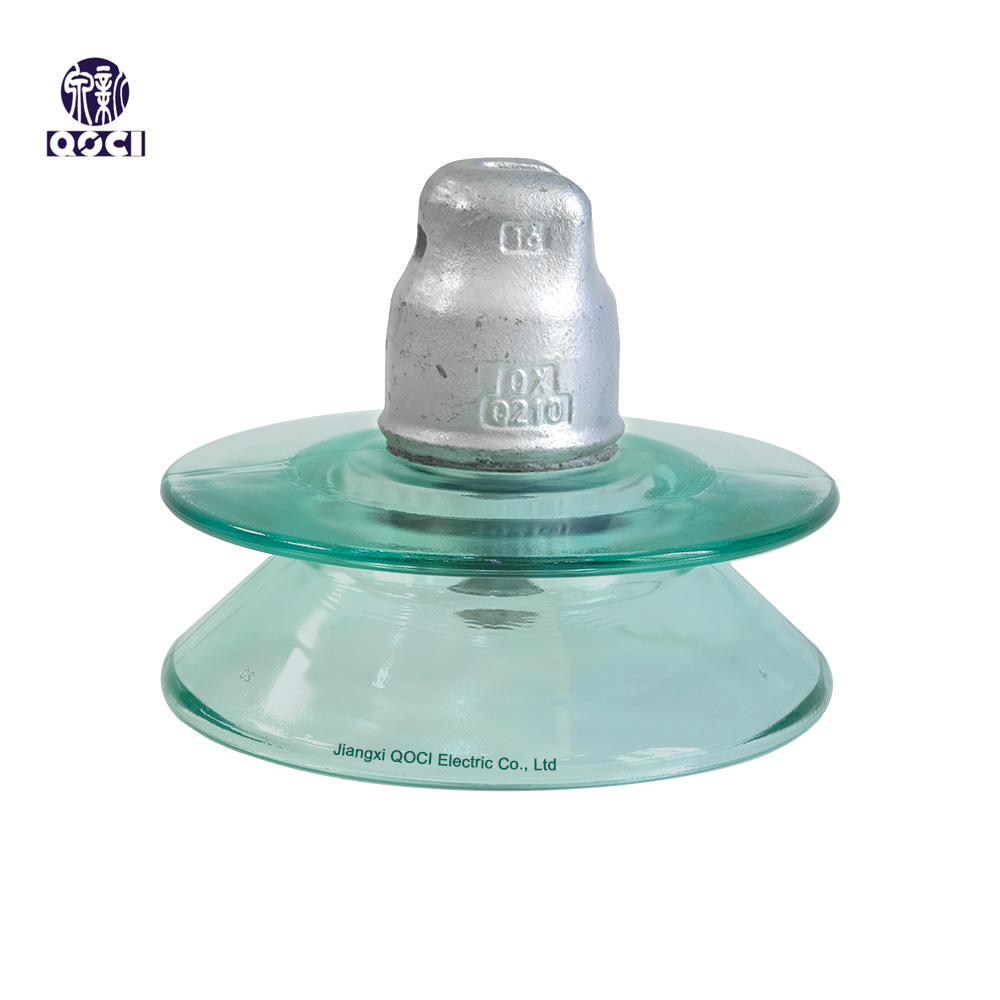

U210BD 210kN High Voltage Two-Winged Suspension Tempered glass Insulator

U210BD 210kN High Voltage Two-Winged Suspension Tempered glass Insulator
