Suspension Glass Insulator

Name: "Suspension Glass Insulator"
Rating: 5 (361 reviews)

Quantity:

SKU: 9662627642

Model: U160BM

Product Details

Product Specification

Type	Disc Insulator, Cap-and-Pin Insulator, Transmission Line Glass Insulator	Model	U160BM
Params	Mechanical Failing Load:160kN Nominal Disc Diameter：280mm Nominal Spacing：155mm Creepage Distance：400mm Socket Coupling:20 Dry Lightning Impulse Withstand Voltage:110kV Wet Power Frequency Withstand Voltage:45kV Power Frequency Puncture Voltage:130kV	Material	Glass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable Industry	Power Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

160kN tempered glass insulator with medium creepage distance, balancing pollution resistance and compact design. Ideal for moderate-pollution areas where extra-high mechanical strength is needed without oversized dimensions.

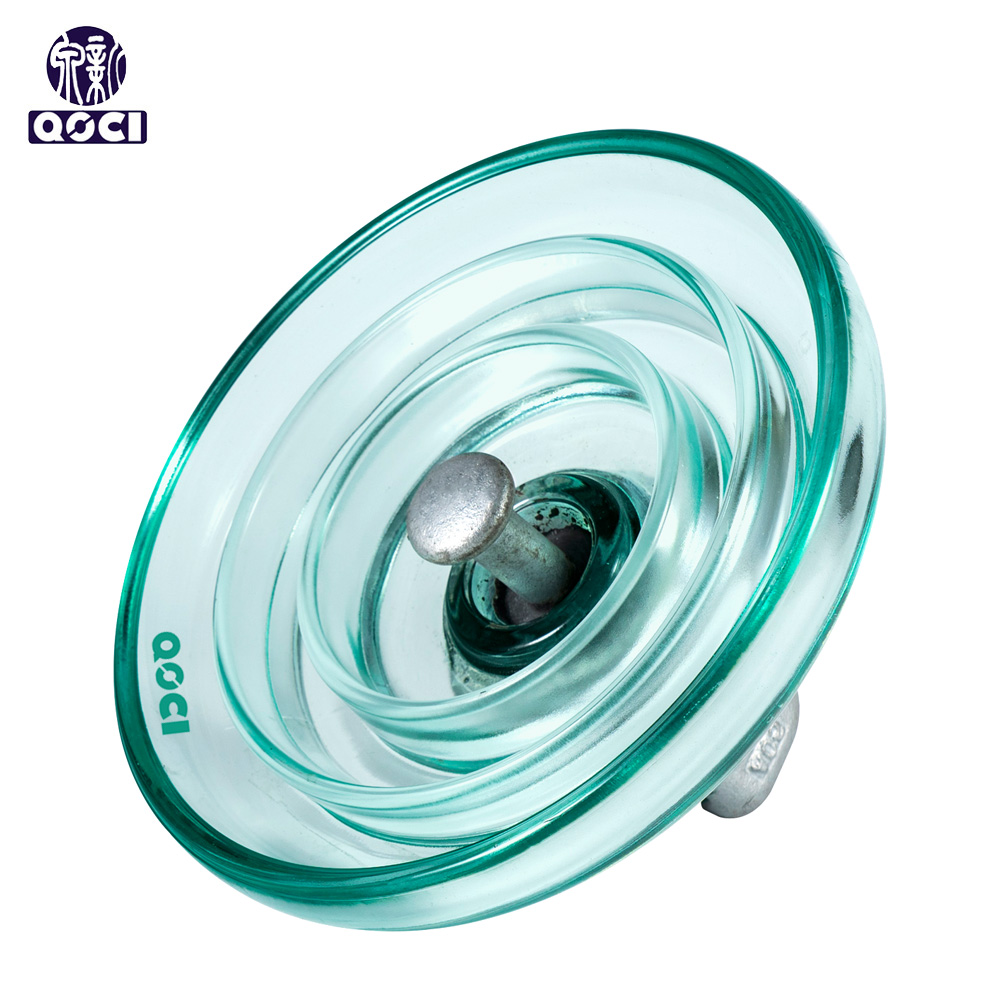

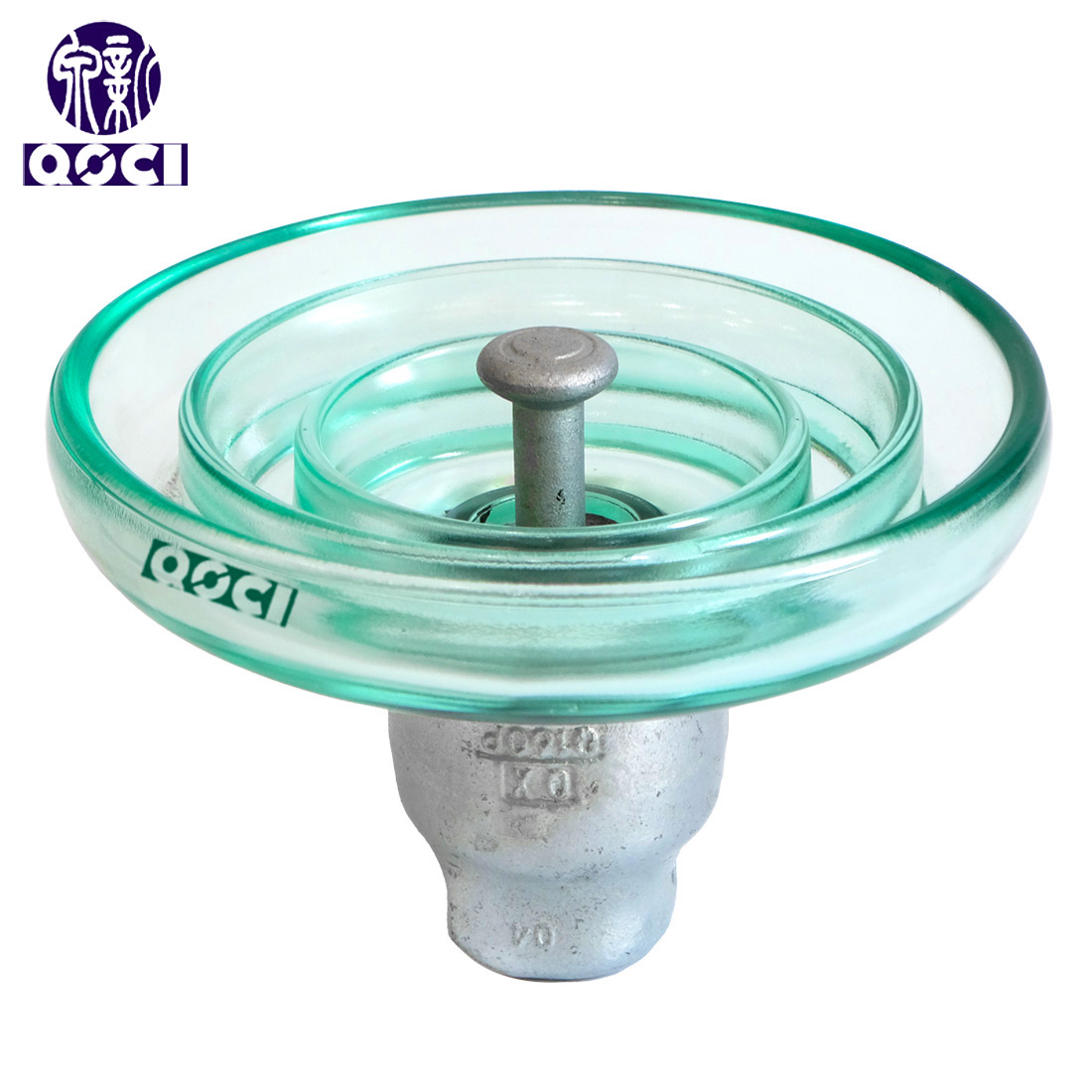

U160BM tempered glass insulator
