Suspension Glass Insulator

Name: "Suspension Glass Insulator"
Rating: 5 (640 reviews)

Quantity:

SKU: 1391720326

Model: PSD70E

Product Details

Product Specification

Type	Disc Insulator, Cap-and-Pin Insulator, Transmission Line Glass Insulator	Model	PSD70E
Params	Mechanical Failing Load:70kN Nominal Disc Diameter：280mm Nominal Spacing：146mm Creepage Distance：450mm Socket Coupling:16 Dry Lightning Impulse Withstand Voltage:120kV Wet Power Frequency Withstand Voltage:45kV Power Frequency Puncture Voltage:110kV	Material	Glass part: tempered glass cap: hot-dip galvanized Cast Iron pin: hot-dip galvanized forged steel
Applicable Industry	Power Transmission, Grid Construction, Electrical Engineering, Overhead Transmission Lines

Feature

70kN mechanical load tempered glass insulator with long creepage and double-shed profile. Increased shed count enhances rain washing and pollution runoff for improved performance in dusty or industrial low-voltage environments.

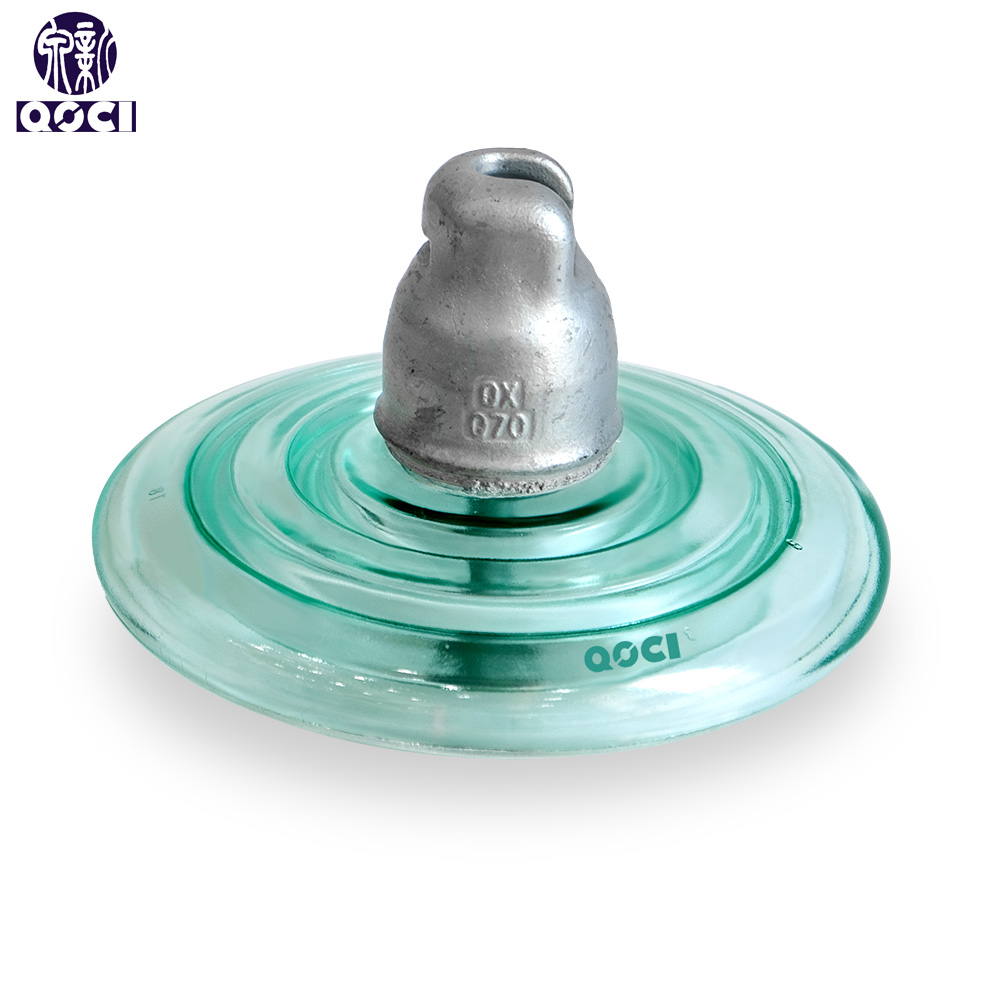

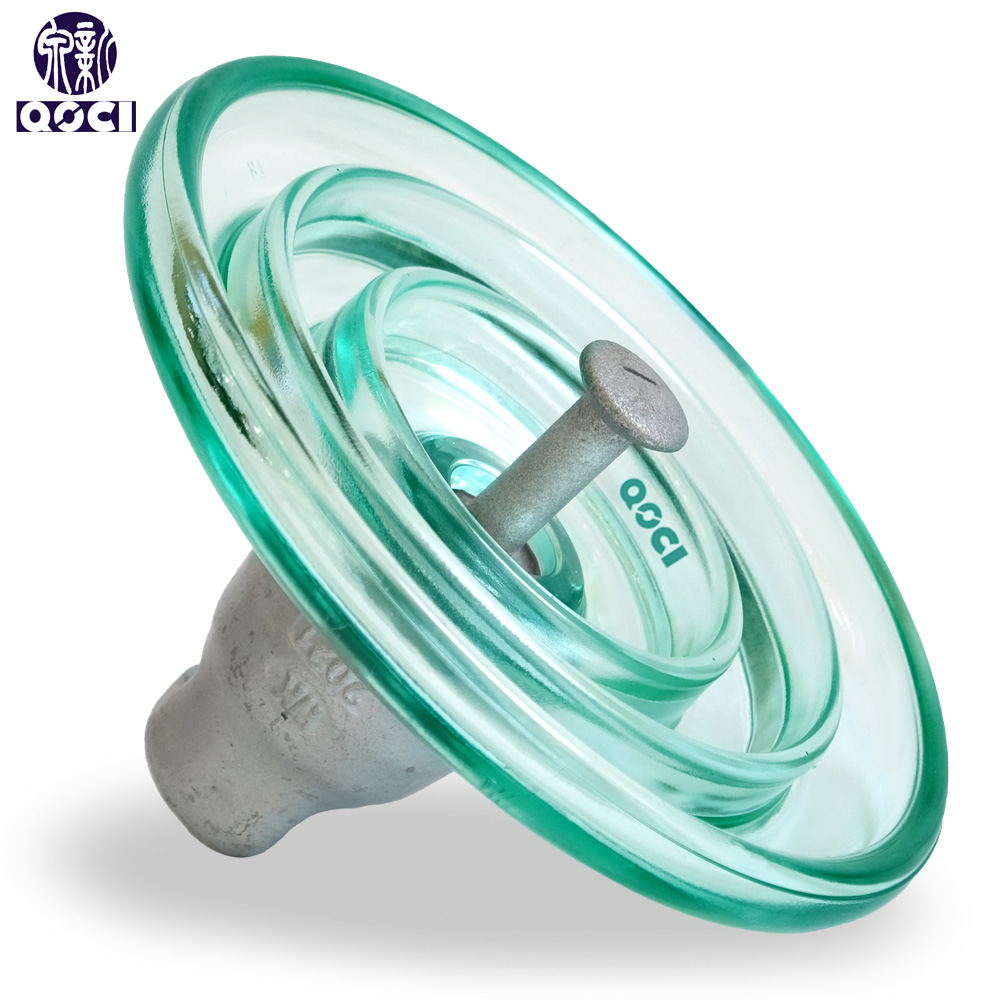

PSD70E Suspension Glass Insulator
