Porcelain Insulator

Quantity:
SKU: 7643565813
Model: P-11-Y

{{ variable.name }}

{{ value.name }}
Product Details

Product Specification

TypePin Type Insulator, Porcelain Insulator, Distribution Line InsulatorModelP-11-Y
ParamsRated voltage: 11kV Rated mechanical load: 10kN Max diameter: 150mm Total height: 150mm Creepage distance: 240mm Power frequency wet withstand voltage: 50kV Lightning impulse withstand voltage: 90kVMaterialinsulator body: high-strength electrical porcelain pin: hot-dip galvanized forged steel
Applicable IndustryPower Distribution, Rural Electrification, Overhead Distribution Lines, Grid Construction

Feature

High-strength electrical porcelain pin insulator with excellent anti-pollution and weather resistance, reliable insulation for 10kV overhead distribution lines, easy installation on wooden or steel cross-arms for rural and urban distribution projects

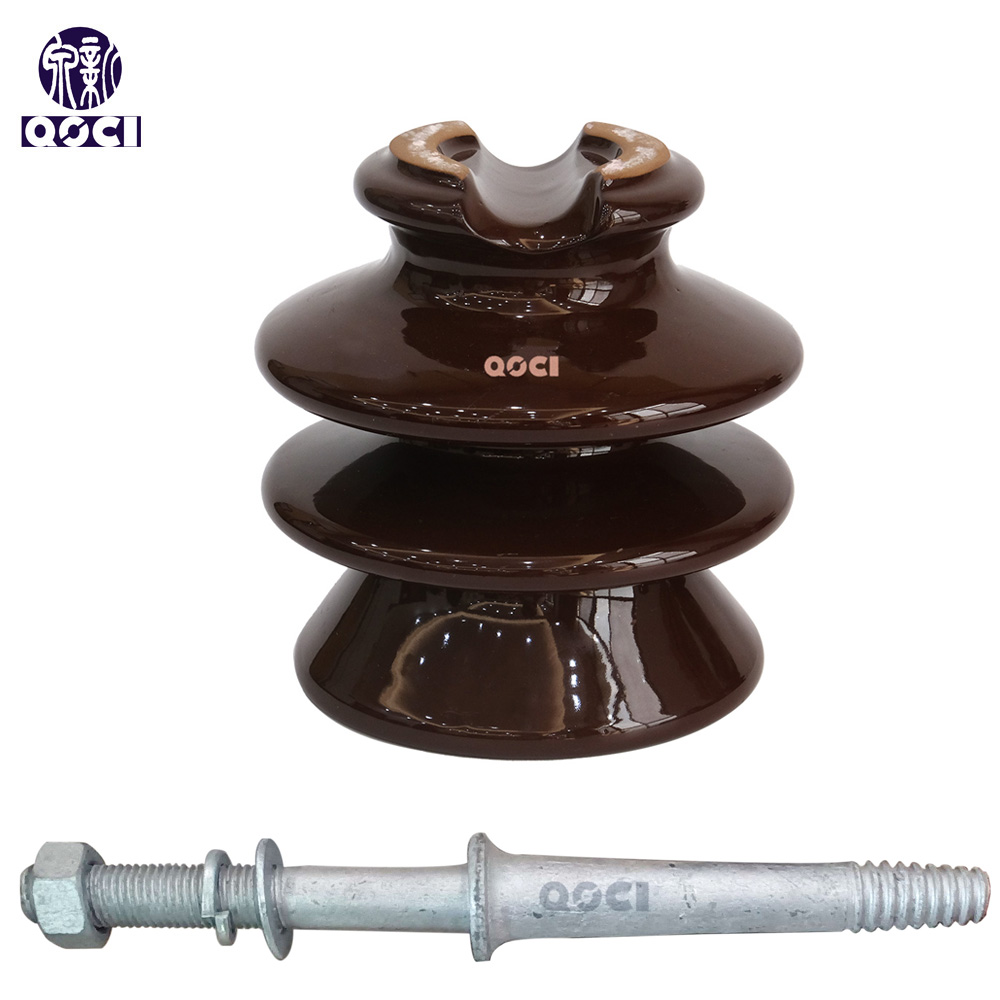

p-11-y pin insulator with Spindle

p-11-y pin insulator with Spindle

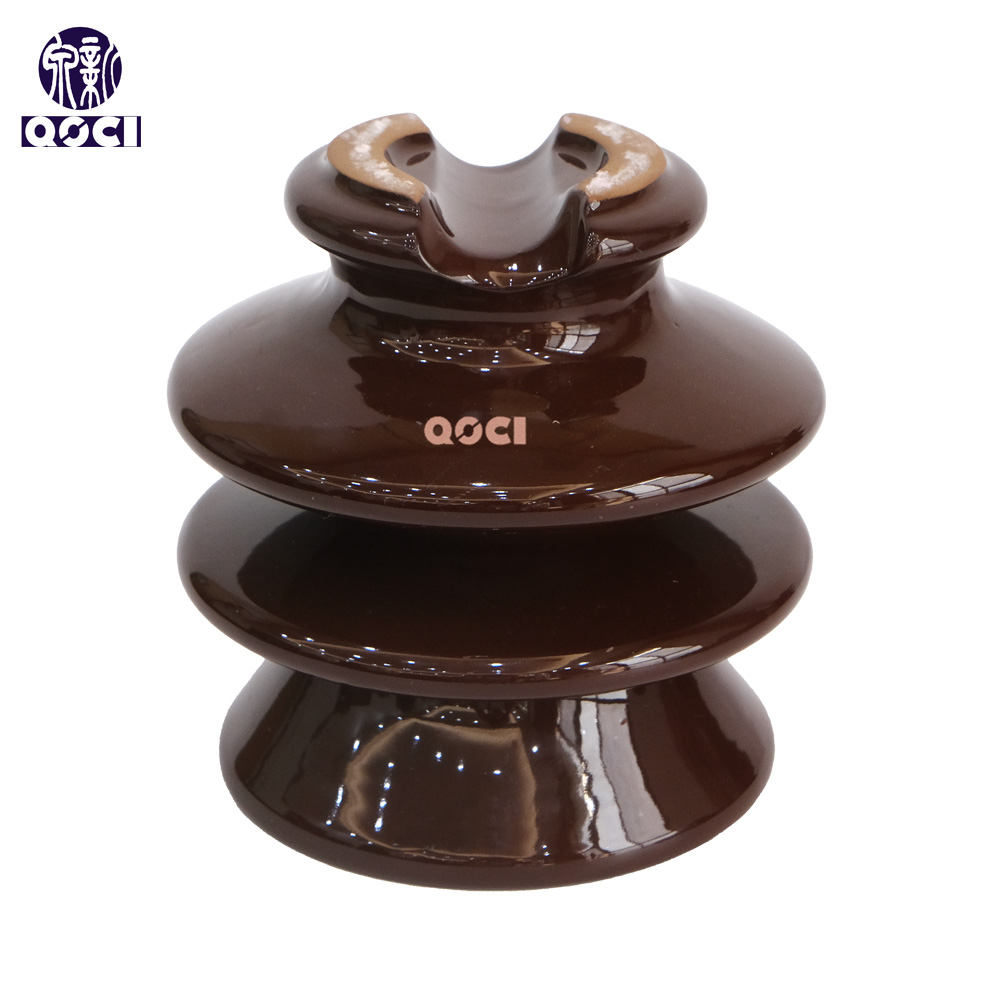

p-11-y pin insulator -1

p-11-y pin insulator -1
